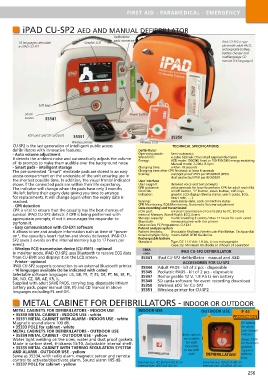

Page 265 - Catalogue 2016 - 17
P. 265
FIRST AID - PARAMEDICAL - EMERGENCY
iPAD CU-SP2 AED AND MANUAL DEFIBRILLATOR
Defibrillator
pads connector
16 languages selectable Graphic LCD iPad CU-SP2 is sup-
as iPAD CU-SP1 plied with adult PADS,
rechargeable battery,
battery charger and
multilanguage CD
manual (14 languages)
Soft keys
Shock Power button
button 35341
i-Button
IrDA port and SD card port 35351 35350
Wireless printer Wireless ECG
CU-SP2 is the last generation of intelligent public access TECHNICAL SPECIFICATIONS
defibrillators with innovative features: Defibrillator
- Auto volume adjustment Operating mode: Semi-automatic
It detects the ambient noise and automatically adjusts the volume Waveform: e-cube biphasic (Truncated exponential type)
Energy:
AED mode: 150/200J fixed or 150-150-200J energy escalating
of its prompts to make them audible over the background noise. Manual mode: 2-200J, R-Sync
- Smart pads - intelligent storage Charging time: within 10 seconds
The pre-connected "Smart" electrode pads are stored in an easy Charging time after CPR finished: at least 6 seconds
access compartment on the underside of the unit ensuring use in Sealing: waterjet proof IPX5 per IEC60529 (IP55)
dust protected IP5X per IEC60529
the shortest possible time. In addition, the visual frontal indicator User interface
shows if the connected pads are within their life expectancy. User support: detailed voice and text prompts
The indicator will change when the pads have only 3 months CPR guidance: voice prompts for how to perform CPR for adult and child
on/off button, ”i“ button, shock button, soft keys
Controls:
life left before their expiry date giving you time to arrange Indicator: graphic LCD display (Device status, user's guide, ECG,
for replacements. It will change again when the expiry date is heart rate, .....)
reached. Sensing: pads expiry date, pads connection status
- CPR detection CPR Monitoring, ECG Monitoring, Automatic Volume adjustment
Data recording and transmission
CPR is vital to ensure that the casualty has the best chances of IrDA port: wireless transmission of event data to PC, SD Card
survival. iPAD CU-SP2 detects if CPR is being performed with Internal Memory (Nand-flash): ECG, Event
appropriate prompts, if not it encourages the responder to Storage capacity: multi recording 3 events / Max 17 hours for each event
perform it. Bluetooth: communication with the printer
Data review PC Programme: CU-EX1
- Easy communication with CU-EX1 software Patient analysis system
It allows to see and analyze information such as time of "power Patient Analysis: Shockable Rhythms (Ventricular Fibrillation, Tachycardia)
on", the casualty's heart rhythm and shocks delivered. iPAD CU- Sensitivity/Specificity meets AAMI DF80 Guideline
Rechargeable battery
SP2 saves 3 events on the internal memory (up to 17 hours per Standard Type: DC 11.1 Volt 1.9 Ah, Li-ion rechargeable
event). Capacity: Minimum 60 shocks or 3 hours of operation
- Wireless ECG transmission device (CU-EM1) - optional GIMA
In monitor mode, iPAD CU-SP2 uses Bluetooth to receive ECG data code iPAD CU-SP2 DEFIBRILLATOR
from CU-EM1 and displays it on the LCD screen. 35341 iPad CU-SP2 defibrillator - manual and AED
- Printer - optional ACCESSORIES FOR CU-SP2
iPAD CU-SP2 supports connection to an external Bluetooth printer. 35344 Adult PADS - kit of 2 pcs - disposable
- 16 languages available (to be indicated with order) 35345 Pediatric PADS - kit of 2 pcs - disposable
Selectable software languages: US, GB, FR, IT, ES, DE, PT, NL, SE, PL, 35347 Rechargeable 12 V, 1.9 Ah Li-ion battery
DK, NO, CZ, GR, AE, KR, IL. 35349 SD card+ software for event recording download
Supplied with adult SAVE PADS, carrying bag, disposable lithium 35350
battery pack, paper manual (GB, IT) and CD manual in above 35351 Wireless ECG for CU-SP2
languages excluding PL and GR. Wireless printer for CU-SP2
METAL CABINET FOR DEFIBRILLATORS - INDOOR OR OUTDOOR
METAL CABINETS FOR DEFIBRILLATORS - INDOOR USE INDOOR USE OUTDOOR USE IP 44
• 35330 METAL CABINET - INDOOR USE - white
• 35331 METAL CABINET WITH ALARM - INDOOR USE - white PROTECTION
Magnetic sound alarm 100 dB. 9V battery
• 35333 POLE for cabinet - white for alarm.
METAL CABINETS FOR DEFIBRILLATORS - OUTDOOR USE Low charger
• 35334 METAL CABINET - OUTDOOR USE - yellow Both cabinets indicator
Water tight welding on the sides, water and dust proof gaskets. are suitable Power 230V
Made in carbon steel, thickness 15/10. Adjustable internal shelf. for walls for thermore-
• 35335 METAL CABINET WITH THERMO REGULATION SYSTEM mounting gulation.
AND ALARM - OUTDOOR USE - yellow or use with Supplied
without
pole
Same as 35334, with radio alarm, magnetic sensor and remote plug.
control to activate/disactivate alarm. Sound alarm 105 dB.
• 35337 POLE for cabinet - yellow External size: 42.5x16xh 42.5 cm External size: 43x21xh 48 cm
Internal size: 40x13xh 40 cm
Internal size: 42x20xh 45 cm
