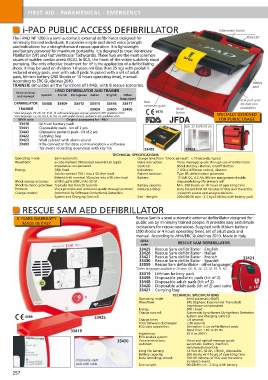

Page 266 - Catalogue 2016 - 17

FIRST AID - PARAMEDICAL - EMERGENCY

i-PAD PUBLIC ACCESS DEFIBRILLATOR Information button

The i-PAD NF 1200 is a semi-automatic external defibrillator designed for State LED
minimally trained individuals. It provides simple and direct voice prompts
and indications for a straightforward rescue operation. It is lightweight
and battery powered for maximum portability. It is designed to treat Ventricular
Fibrillation (VF) and Fast Ventricular Tachycardia. These two are the most common
causes of sudden cardiac arrest (SCA). In SCA, the heart of the victim suddenly stops
pumping. The only effective treatment for VF is the application of a defibrillating
shock. It may be used on children 1-8 years old (less than 25 kg) with pediatric
reduced energy pads, over with adult pads. Supplied with a set of adult
pads, lithium battery (200 Shocks or 10 hours operating time), manual.
According to ERC Guidelines 2010. Battery
TRAINER: simulates all the functions of i-PAD, with 8 rescue scenarios. pack
i-PAD DEFIBRILLATOR AND TRAINER
Voice version
and manual Spanish French Portuguese Italian English Other
languages* IrDA port used
DEFIBRILLATOR 33408 33409 33413 33414 33416 33417 Pads for data com-
connector guide
TRAINER - - - 33424 33405 33406 Shock munication
* Voice languages: DE, DK, KR, JP, NL, SE, with same language manual, updated to ERC guidelines 2010 0470 button
* Voice languages: CZ, GR, HU, IL, IR, NO, TR, with English manual, updated to ERC guidelines 2005 SPECIALLY DESIGNED
GIMA code Original accessories for I-PAD JFDA FOR PUBLIC USAGE
33418 Lithium battery pack
33441 Disposable pads - kit of 2 pcs Size: 32.5x34x18 cm
33443 Disposable pediatric pads - kit of 2 pcs
33422 Carrying bag
33423 Wall cabinet with alarm sound
33403 IrDa connector for data communication + software
for event recording download with key file 33405 33423 33422
TECHNICAL SPECIFICATIONS
Operating mode: Semi-automatic Charge time from “Shock advised”: < 10 seconds, typical
Waveform: e-cube biphasic (Truncated exponential type); Voice instruction: Voice messages guide through use of defibrillator
impedance compensated Controls: Shock Button, i-Button, On/Off Button
Energy: 200J fixed Indicators: 7 LEDs ( different colors), i-Button
Adult: nominal 150 J into a 50 ohm load Patient isolation: Type BF, defibrillation protected
Infant/child: nominal 50 joules into a 50 ohm load Battery: 12 Volt DC, 4.2 Ah, lithium manganese dioxide,
Shock energy accuracy: Within ±3% (200 J into 50 Ω) disposable long-life primary cell
Shock to shock cycle time: Typically less than 20 seconds Battery capacity: Min. 200 Shocks or 10 hours of operating time
Protocol: Voice prompts and indicators guide through protocol Data recording: Data Stored: First 40 minutes of ECG and the entire
Charge control: Automatic by Software (Arrhythmia Detection incident’s events and analysis decision
System and Charging Control) Size - Weight: 220x260x70 mm - 2.2 kg (4.84 lbs) with battery pack

RESCUE SAM AED DEFIBRILLATOR

5 YEARS WARRANTY Rescue Sam is a semi automatic external defibrillator designed for
MADE IN ITALY public use by minimally trained people. It provides easy and simple
indications for rescue operations. Supplied with lithium battery
(200 shocks or 4 hours operating time), set of adult pads and
manual. According to AHA/ERC Guidelines 2010. Made in Italy.
GIMA RESCUE SAM DEFIBRILLATOR
code
33425 Rescue Sam defibrillator - English
33426 Rescue Sam defibrillator - Italian
33427 Rescue Sam defibrillator - French 33421
33430 Rescue Sam defibrillator - Spanish
33559 Rescue Sam defibrillator - other languages *
* Other languages available in 20 days: DE, PL, NL, CZ, SE, TR, FI, RU
33419 Lithium battery pack
33458 Disposable pediatric pads (kit of 2)
33448 Disposable adult pads (kit of 2)
33420 Disposable adult pads (kit of 2) and cable
33421 Carrying bag
TECHNICAL SPECIFICATIONS
Operating mode: Semi-automatic (DAE)
Waveform: BTE (Biphasic Exponential Truncated)
impedance compensated
Energy: 200 J fixed
Charge control: Automatic by software (Arrhythmia Detection
0068 33425 System and charging control)
Charge time: < 8 seconds
Time between discharges: < 20 seconds
ECG data acquisition: Derivation II, by defibrillation pads.
33419 Band from 1 Hz to 35 Hz
Impedance: 25 Ω to 200 Ω
ECG analisis system:
33420 Voice instructions: Vocal and optical message guide
Autotest: automatic, battery insertion,
daily/weekly/monthly
Long life battery: 12 Volt DC, 42 Ah, LiMnO disposable
2
Battery capacity: 200 shocks or 4 hours of operating time
Data recording, stored: first 60 minutes of ECG and the entire
Disposable adult incident's event
pads with cable Size-weight: 30x28x9 h cm - 2.3 kg with battery
257
