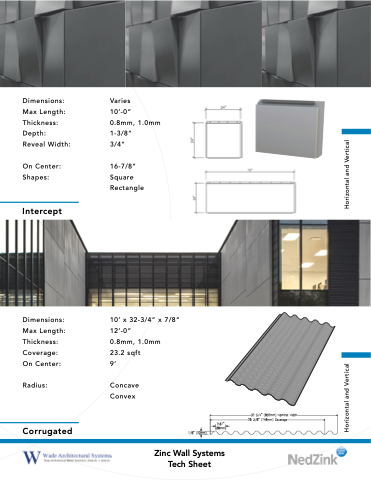

Page 1 - Data Sheet Booklet

Dimensions: Max Length: Thickness: Depth:
Reveal Width:
On Center: Shapes:
Intercept
Varies
10’-0”
0.8mm, 1.0mm 1-3/8“
3/4”
16-7/8” Square Rectangle
Dimensions: Max Length: Thickness: Coverage: On Center:
Radius:
Corrugated
10’ x 32-3/4” x 7/8“ 12’-0”
0.8mm, 1.0mm
23.2 sqft
9’
Concave Convex
Zinc Wall Systems Tech Sheet
Horizontal and Vertical Horizontal and Vertical
