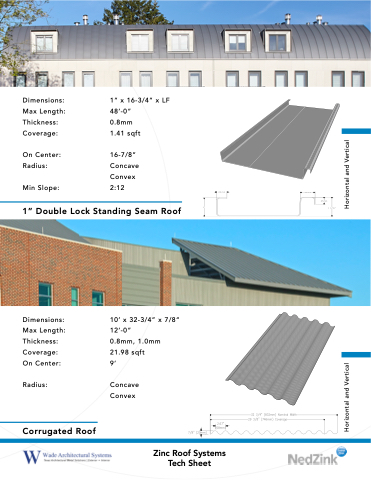

Page 4 - Data Sheet Booklet

Dimensions: Max Length: Thickness: Coverage:
On Center: Radius:
Min Slope:
1” x 16-3/4” x LF 48’-0”
0.8mm
1.41 sqft
16-7/8” Concave Convex 2:12
1” Double Lock Standing Seam Roof
Dimensions: Max Length: Thickness: Coverage: On Center:
Radius:
Corrugated Roof
10’ x 32-3/4” x 7/8“ 12’-0”
0.8mm, 1.0mm 21.98 sqft
9’
Concave Convex
Zinc Roof Systems Tech Sheet
Horizontal and Vertical Horizontal and Vertical
