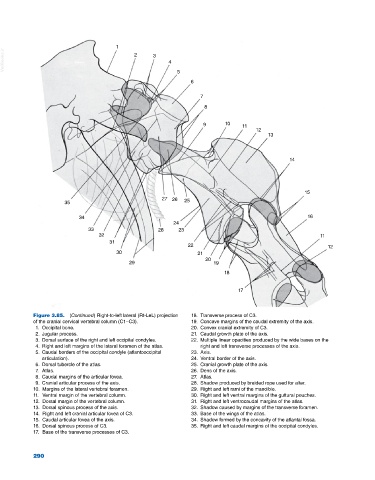

Figure 3.85. (Continued) Right‐to‐left lateral (Rt‐LeL) projection 18. Transverse process of C3.
of the cranial cervical vertebral column (C1–C3). 19. Concave margins of the caudal extremity of the axis.
1. Occipital bone. 20. Convex cranial extremity of C3.
2. Jugular process. 21. Caudal growth plate of the axis.
3. Dorsal surface of the right and left occipital condyles. 22. Multiple linear opacities produced by the wide bases on the
4. Right and left margins of the lateral foramen of the atlas. right and left transverse processes of the axis.
5. Caudal borders of the occipital condyle (atlantooccipital 23. Axis.
articulation). 24. Ventral border of the axis.
6. Dorsal tubercle of the atlas. 25. Cranial growth plate of the axis.
7. Atlas. 26. Dens of the axis.
8. Caudal margins of the articular fovea. 27. Atlas.
9. Cranial articular process of the axis. 28. Shadow produced by braided rope used for alter.
10. Margins of the lateral vertebral foramen. 29. Right and left rami of the mandible.
11. Ventral margin of the vertebral column. 30. Right and left ventral margins of the guttural pouches.
12. Dorsal margin of the vertebral column. 31. Right and left ventrocaudal margins of the atlas.
13. Dorsal spinous process of the axis. 32. Shadow caused by margins of the transverse foramen.
14. Right and left cranial articular fovea of C3. 33. Base of the wings of the atlas.
15. Caudal articular fovea of the axis. 34. Shadow formed by the concavity of the atlantal fossa.
16. Dorsal spinous process of C3. 35. Right and left caudal margins of the occipital condyles.
17. Base of the transverse processes of C3.
