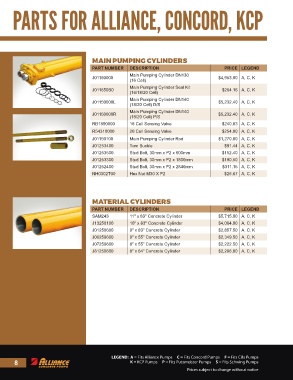

Page 10 - 2018 Alliance Parts Catalog Canada FULL

PARTS FOR ALLIANCE, CONCORD, KCP

MAIN PUMPING CYLINDERS
PART NUMBER DESCRIPTION PRICE LEGEND
Main Pumping Cylinder DN130
J01160000 $4,953.00 A, C, K
(16 Cell)
Main Pumping Cylinder Seal Kit
J011650S0 $264.16 A, C, K
(16/18/20 Cell)
Main Pumping Cylinder DN140
J01150000L $5,232.40 A, C, K
(18/20 Cell) D/S
Main Pumping Cylinder DN140
J01150000R $5,232.40 A, C, K
(18/20 Cell) P/S
RB1890000 16 Cell Sensing Valve $240.03 A, C, K
R54310000 20 Cell Sensing Valve $254.00 A, C, K
J01150100 Main Pumping Cylinder Rod $1,270.00 A, C, K
J01253400 Turn Buckle $91.44 A, C, K
J01253500 Stud Bolt, 30mm x P2 x 600mm $152.40 A, C, K
J01253300 Stud Bolt, 30mm x P2 x 1800mm $190.50 A, C, K
J01252400 Stud Bolt, 30mm x P2 x 2840mm $311.15 A, C, K
NH0302T00 Hex Nut M30 X P2 $26.67 A, C, K

MATERIAL CYLINDERS

PART NUMBER DESCRIPTION PRICE LEGEND
SAM243 11" x 83" Concrete Cylinder $5,715.00 A, C, K
J13250100 10" x 83" Concrete Cylinder $4,064.00 A, C, K
J01250600 9" x 83" Concrete Cylinder $2,857.50 A, C, K
J06259600 9" x 55" Concrete Cylinder $2,349.50 A, C, K
J07259600 8" x 55" Concrete Cylinder $2,222.50 A, C, K
J81250600 8" x 64" Concrete Cylinder $2,286.00 A, C, K

LEGEND: A = Fits Alliance Pumps C = Fits Concord Pumps F = Fits Cifa Pumps
8 K = KCP Pumps P = Fits Putzmeister Pumps S = Fits Schwing Pumps

Prices subject to change without notice
