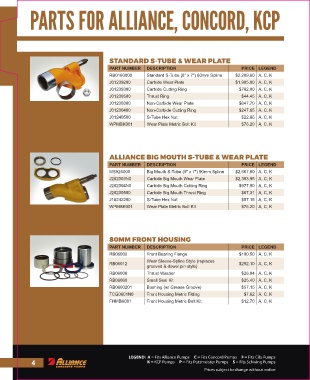

Page 6 - 2018 Alliance Parts Catalog Canada FULL

PARTS FOR ALLIANCE, CONCORD, KCP

STANDARD S-TUBE & WEAR PLATE
PART NUMBER DESCRIPTION PRICE LEGEND
RB0180000 Standard S-Tube (8" x 7") 80mm Spline $2,209.80 A, C, K
J01239200 Carbide Wear Plate $1,905.00 A, C, K
J01239300 Carbide Cutting Ring $762.00 A, C, K
J01230500 Thrust Ring $44.45 A, C, K
J01230300 Non-Carbide Wear Plate $647.70 A, C, K
J01230400 Non-Carbide Cutting Ring $247.65 A, C, K
J01240500 S-Tube Hex Nut $22.86 A, C, K
WPMBK001 Wear Plate Metric Bolt Kit $76.20 A, C, K

ALLIANCE BIG MOUTH S-TUBE & WEAR PLATE
PART NUMBER DESCRIPTION PRICE LEGEND
MS925000 Big Mouth S-Tube (9" x 7") 90mm Spline $2,667.00 A, C, K
J202303N0 Carbide Big Mouth Wear Plate $2,393.95 A, C, K
J202304N0 Carbide Big Mouth Cutting Ring $977.90 A, C, K
J20230500 Carbide Big Mouth Thrust Ring $67.31 A, C, K
J18242200 S-Tube Hex Nut $57.15 A, C, K
WPMBK001 Wear Plate Metric Bolt Kit $76.20 A, C, K

80MM FRONT HOUSING

PART NUMBER DESCRIPTION PRICE LEGEND
RB06002 Front Bearing Flange $190.50 A, C, K
Wear Sleeve-Spline Style (replaces
RB06012 $292.10 A, C, K
grooved & dowel pin style)
RB06008 Thrust Washer $26.04 A, C, K
RB06060 Small Seal Kit $25.40 A, C, K
RB0600201 Bushing (w/ Grease Groove) $57.15 A, C, K
TCG0601N0 Front Housing Metric Fitting $7.62 A, C, K
FHMBK001 Front Housing Metric Bolt Kit $12.70 A, C, K

LEGEND: A = Fits Alliance Pumps C = Fits Concord Pumps F = Fits Cifa Pumps
4 K = KCP Pumps P = Fits Putzmeister Pumps S = Fits Schwing Pumps

Prices subject to change without notice
