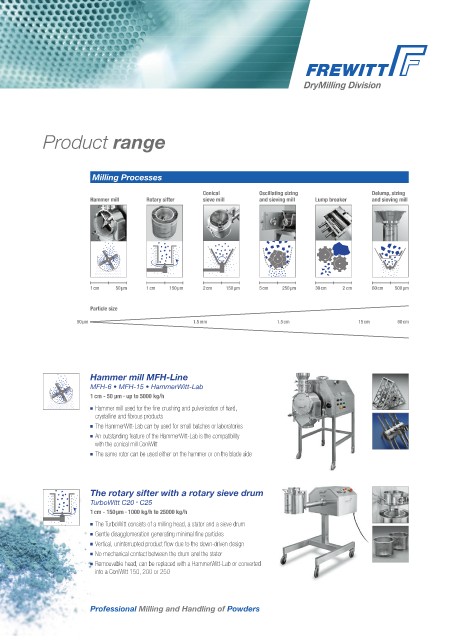

Product range
Milling Processes
Conical Oscillating sizing Delump, sizing
Hammer mill Rotary sifter sieve mill and sieving mill Lump breaker and sieving mill
1 cm 50 µm 1 cm 150 µm 2 cm 150 µm 5 cm 250 µm 30 cm 2 cm 60 cm 500 µm
Particle size
50 µm 1.5 mm 1.5 cm 15 cm 60 cm
Hammer mill MFH-Line
MFH-6 • MFH-15 • HammerWitt-Lab
1 cm - 50 μm • up to 5000 kg/h
Hammer mill used for the fine crushing and pulverisation of hard,
crystalline and fibrous products
The HammerWitt-Lab can by used for small batches or laboratories
An outstanding feature of the HammerWitt-Lab is the compatibility
with the conical mill ConiWitt
The same rotor can be used either on the hammer or on the blade side
The rotary sifter with a rotary sieve drum
TurboWitt C20 C25
•
1 cm - 150 μm • 1000 kg/h to 25000 kg/h
The TurboWitt consists of a milling head, a stator and a sieve drum
Gentle disagglomeration generating minimal fine particles
Vertical, uninterrupted product flow due to the down-driven design
No mechanical contact between the drum and the stator
Remouvable head, can be replaced with a HammerWitt-Lab or converted
into a ConiWitt 150, 200 or 250
Professional Milling and Handling of Powders
