En Modification

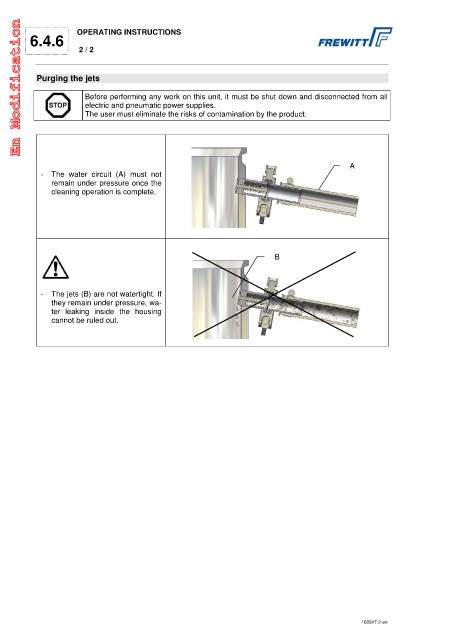

OPERATING INSTRUCTIONS
6.4.6
2 / 2
Purging the jets
Before performing any work on this unit, it must be shut down and disconnected from all
electric and pneumatic power supplies.
The user must eliminate the risks of contamination by the product.
A
- The water circuit (A) must not
remain under pressure once the
cleaning operation is complete.
B
- The jets (B) are not watertight. If
they remain under pressure, wa-
ter leaking inside the housing
cannot be ruled out.
160847-2-en
