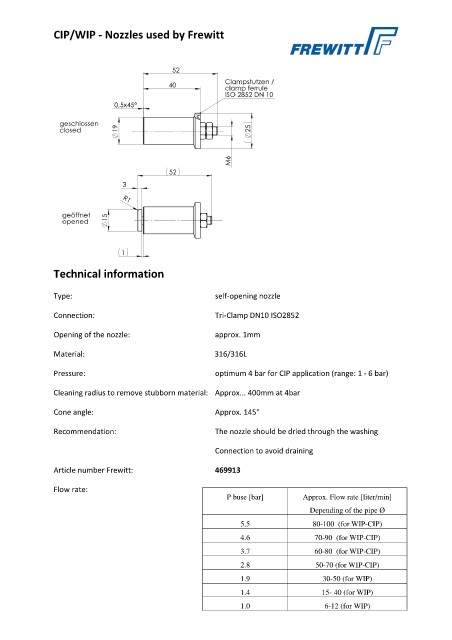

CIP/WIP - Nozzles used by Frewitt

Technical information

Type: self-opening nozzle

Connection: Tri-Clamp DN10 ISO2852

Opening of the nozzle: approx. 1mm

Material: 316/316L

Pressure: optimum 4 bar for CIP application (range: 1 - 6 bar)

Cleaning radius to remove stubborn material: Approx... 400mm at 4bar

Cone angle: Approx. 145°

Recommendation: The nozzle should be dried through the washing

Connection to avoid draining

Article number Frewitt: 469913

Flow rate:
P buse [bar] Approx. Flow rate [liter/min]
Depending of the pipe Ø

5.5 80-100 (for WIP-CIP)
4.6 70-90 (for WIP-CIP)
3.7 60-80 (for WIP-CIP)
2.8 50-70 (for WIP-CIP)

1.9 30-50 (for WIP)
1.4 15- 40 (for WIP)
1.0 6-12 (for WIP)
