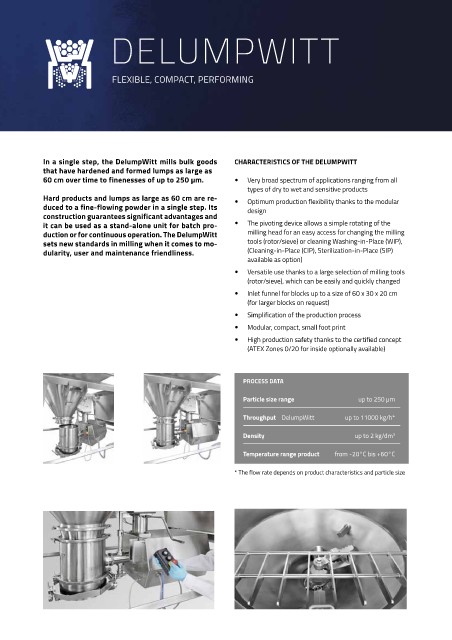

Page 1355 - Flipbook_SolidDesignSoutheast2020

DELUMPWITT

FLEXIBLE, COMPACT, PERFORMING

In a single step, the DelumpWitt mills bulk goods CHARACTERISTICS OF THE DELUMPWITT
that have hardened and formed lumps as large as
60 cm over time to finenesses of up to 250 μm. — Very broad spectrum of applications ranging from all
types of dry to wet and sensitive products
Hard products and lumps as large as 60 cm are re- — Optimum production flexibility thanks to the modular
duced to a fine-flowing powder in a single step. Its design
construction guarantees significant advantages and
it can be used as a stand-alone unit for batch pro- — The pivoting device allows a simple rotating of the
duction or for continuous operation. The DelumpWitt milling head for an easy access for changing the milling
sets new standards in milling when it comes to mo- tools (rotor/sieve) or cleaning Washing-in-Place (WIP),
dularity, user and maintenance friendliness. (Cleaning-in-Place (CIP), Sterilization-in-Place (SIP)
available as option)
— Versatile use thanks to a large selection of milling tools
(rotor/sieve), which can be easily and quickly changed
— Inlet funnel for blocks up to a size of 60 x 30 x 20 cm
(for larger blocks on request)
— Simplification of the production process
— Modular, compact, small foot print
— High production safety thanks to the certified concept
(ATEX Zones 0/20 for inside optionally available)

PROCESS DATA

Particle size range up to 250 μm

Throughput DelumpWitt up to 11000 kg/h*

Density up to 2 kg/dm 3

Temperature range product from -20°C bis +60°C

* The flow rate depends on product characteristics and particle size
