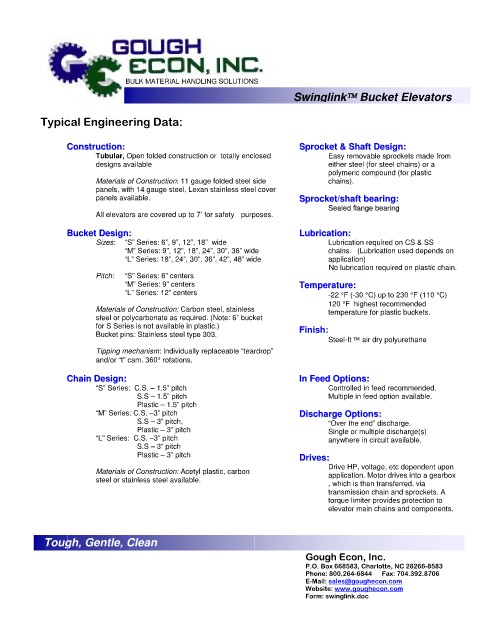

BULK MATERIAL HANDLING SOLUTIONS
Swinglink   Bucket Elevators

Typical Engineering Data:

C Co on ns st tr ru uc ct ti io on n: : S Sp pr ro oc ck ke et t & & S Sh ha af ft t D De es si ig gn n: :
Tubular, Open folded construction or totally enclosed Easy removable sprockets made from
designs available either steel (for steel chains) or a
polymeric compound (for plastic
Materials of Construction: 11 gauge folded steel side chains).
panels, with 14 gauge steel, Lexan stainless steel cover
panels available. S Sp pr ro oc ck ke et t/ /s sh ha af ft t b be ea ar ri in ng g: :
S Se ea al le ed d f fl la an ng ge e b be ea ar ri in ng g
All elevators are covered up to 7’ for safety purposes.

B Bu uc ck ke et t D De es si ig gn n: : L Lu ub br ri ic ca at ti io on n: :
Sizes: “S” Series: 6”, 9”, 12”, 18” wide Lubrication required on CS & SS
“M” Series: 9”, 12”, 18”, 24”, 30”, 36” wide chains. (Lubrication used depends on
“L” Series: 18”, 24”, 30”, 36”, 42”, 48” wide application)
No lubrication required on plastic chain.
Pitch: “S” Series: 6” centers
“M” Series: 9” centers T Te em mp pe er ra at tu ur re e: :
“L” Series: 12” centers -22 °F (-30 °C) up to 230 °F (110 °C)
120 °F highest recommended
Materials of Construction: Carbon steel, stainless temperature for plastic buckets.
steel or polycarbonate as required. (Note: 6” bucket
for S Series is not available in plastic.) Finish:
Bucket pins: Stainless steel type 303.
Steel-It  air dry polyurethane
Tipping mechanism: Individually replaceable “teardrop”
and/or “t” cam. 360° rotations.

C Ch ha ai in n D De es si ig gn n: : I In n F Fe ee ed d O Op pt ti io on ns s: :
“S” Series: C.S. – 1.5” pitch Controlled in feed recommended.
S.S – 1.5” pitch Multiple in feed option available.
Plastic – 1.5” pitch
“M” Series: C.S. –3” pitch D Di is sc ch ha ar rg ge e O Op pt ti io on ns s: :
S.S – 3” pitch, “Over the end” discharge.
Plastic – 3” pitch Single or multiple discharge(s)
“L” Series: C.S. –3” pitch anywhere in circuit available.
S.S – 3” pitch
Plastic – 3” pitch D Dr ri iv ve es s: :
Drive HP, voltage, etc dependent upon
Materials of Construction: Acetyl plastic, carbon application. Motor drives into a gearbox
steel or stainless steel available.
, which is then transferred, via
transmission chain and sprockets. A
torque limiter provides protection to
elevator main chains and components.

Tough, Gentle, Clean
Gough Econ, Inc.
P.O. Box 668583, Charlotte, NC 28266-8583
Phone: 800.264-6844 Fax: 704.392.8706
E-Mail: sales@goughecon.com
Form: swinglink.doc
Website: www.goughecon.com
