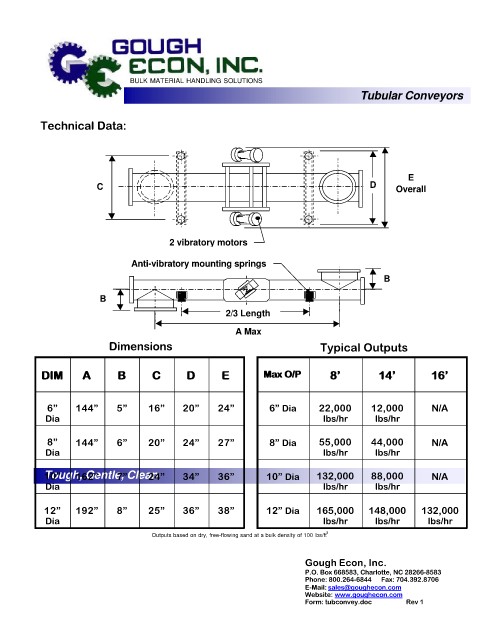

BULK MATERIAL HANDLING SOLUTIONS
Tubular Conveyors

Technical Data:

E
C D Overall

2 vibratory motors

Anti-vibratory mounting springs
B

B

2/3 Length
A Max
Dimensions Typical Outputs

14’
DIM
16’
DIM A A B B C C D D E E Max O/P 8’ 8’ 14’ 16’
Max O/P
6” 144” 5” 16” 20” 24” 6” Dia 22,000 12,000 N/A
Dia lbs/hr lbs/hr

8” 144” 6” 20” 24” 27” 8” Dia 55,000 44,000 N/A
Dia lbs/hr lbs/hr

Tough, Gentle, Clean 34” 36” 10” Dia 132,000 88,000 N/A
10”
7”
162”
24”
Dia lbs/hr lbs/hr
12” 192” 8” 25” 36” 38” 12” Dia 165,000 148,000 132,000
Dia lbs/hr lbs/hr lbs/hr
Outputs based on dry, free-flowing sand at a bulk density of 100 lbs/ft 3

Gough Econ, Inc.
P.O. Box 668583, Charlotte, NC 28266-8583
Phone: 800.264-6844 Fax: 704.392.8706
E-Mail: sales@goughecon.com
Website: www.goughecon.com
Form: tubconvey.doc Rev 1
