Horizon Equipment Company

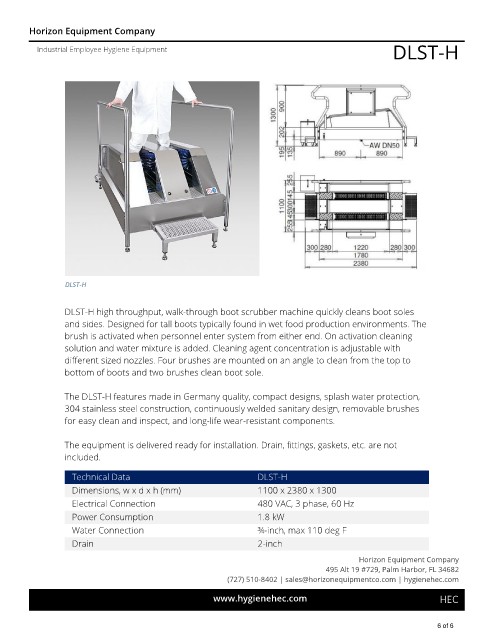

Industrial Employee Hygiene Equipment DLST-H
DLST-H
DLST-H high throughput, walk-through boot scrubber machine quickly cleans boot soles
and sides. Designed for tall boots typically found in wet food production environments. The
brush is activated when personnel enter system from either end. On activation cleaning
solution and water mixture is added. Cleaning agent concentration is adjustable with
different sized nozzles. Four brushes are mounted on an angle to clean from the top to
bottom of boots and two brushes clean boot sole.
The DLST-H features made in Germany quality, compact designs, splash water protection,
304 stainless steel construction, continuously welded sanitary design, removable brushes
for easy clean and inspect, and long-life wear-resistant components.
The equipment is delivered ready for installation. Drain, fittings, gaskets, etc. are not
included.
Technical Data DLST-H
Dimensions, w x d x h (mm) 1100 x 2380 x 1300
Electrical Connection 480 VAC, 3 phase, 60 Hz
Power Consumption 1.8 kW
Water Connection ¾-inch, max 110 deg F
Drain 2-inch
Horizon Equipment Company
495 Alt 19 #729, Palm Harbor, FL 34682
(727) 510-8402 | sales@horizonequipmentco.com | hygienehec.com
www.hygienehec.com HEC
6 of 6
