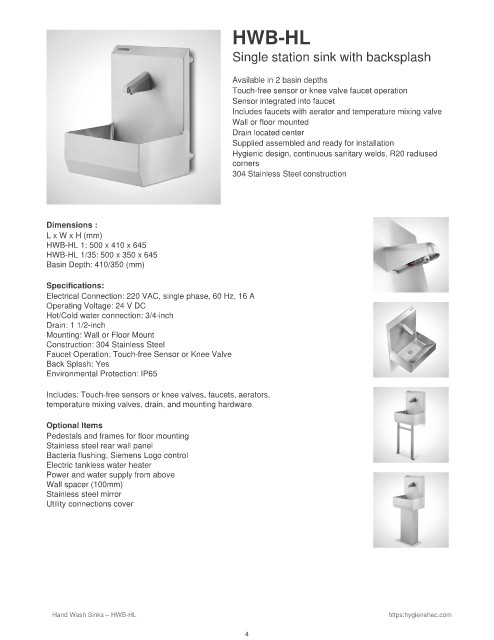

HWB-HL

Single station sink with backsplash

Available in 2 basin depths
Touch-free sensor or knee valve faucet operation
Sensor integrated into faucet
Includes faucets with aerator and temperature mixing valve
Wall or floor mounted
Drain located center
Supplied assembled and ready for installation
Hygienic design, continuous sanitary welds, R20 radiused
corners
304 Stainless Steel construction

Dimensions :
L x W x H (mm)
HWB-HL 1: 500 x 410 x 645
HWB-HL 1/35: 500 x 350 x 645
Basin Depth: 410/350 (mm)

Specifications:
Electrical Connection: 220 VAC, single phase, 60 Hz, 16 A
Operating Voltage: 24 V DC
Hot/Cold water connection: 3/4-inch
Drain: 1 1/2-inch
Mounting: Wall or Floor Mount
Construction: 304 Stainless Steel
Faucet Operation: Touch-free Sensor or Knee Valve
Back Splash: Yes
Environmental Protection: IP65

Includes: Touch-free sensors or knee valves, faucets, aerators,
temperature mixing valves, drain, and mounting hardware.

Optional Items
Pedestals and frames for floor mounting
Stainless steel rear wall panel
Bacteria flushing, Siemens Logo control
Electric tankless water heater
Power and water supply from above
Wall spacer (100mm)
Stainless steel mirror
Utility connections cover
