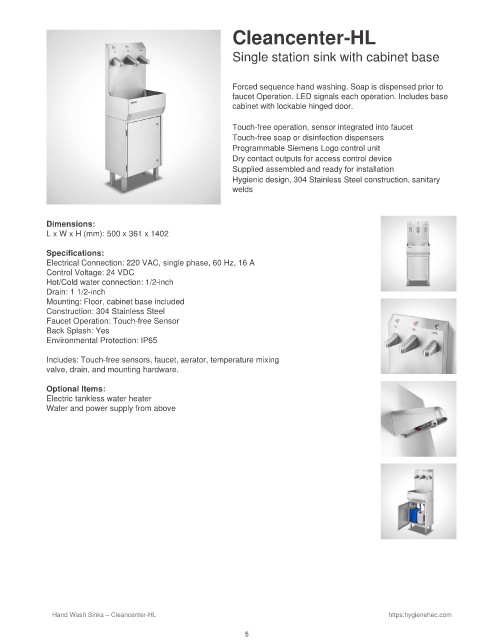

Cleancenter-HL

Single station sink with cabinet base

Forced sequence hand washing. Soap is dispensed prior to
faucet Operation. LED signals each operation. Includes base
cabinet with lockable hinged door.

Touch-free operation, sensor integrated into faucet
Touch-free soap or disinfection dispensers
Programmable Siemens Logo control unit
Dry contact outputs for access control device
Supplied assembled and ready for installation
Hygienic design, 304 Stainless Steel construction, sanitary
welds

Dimensions:
L x W x H (mm): 500 x 361 x 1402

Specifications:
Electrical Connection: 220 VAC, single phase, 60 Hz, 16 A
Control Voltage: 24 VDC
Hot/Cold water connection: 1/2-inch
Drain: 1 1/2-inch
Mounting: Floor, cabinet base included
Construction: 304 Stainless Steel
Faucet Operation: Touch-free Sensor
Back Splash: Yes
Environmental Protection: IP65

Includes: Touch-free sensors, faucet, aerator, temperature mixing
valve, drain, and mounting hardware.

Optional Items:
Electric tankless water heater
Water and power supply from above
