DOVERPAC

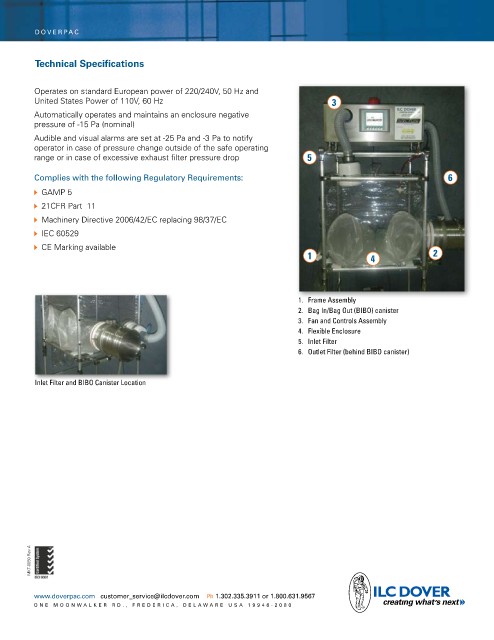

Technical Specifications

Operates on standard European power of 220/240V, 50 Hz and
United States Power of 110V, 60 Hz 3
Automatically operates and maintains an enclosure negative
pressure of -15 Pa (nominal)

Audible and visual alarms are set at -25 Pa and -3 Pa to notify
operator in case of pressure change outside of the safe operating
range or in case of excessive exhaust filter pressure drop 5

Complies with the following Regulatory Requirements: 6
GAMP 5
21CFR Part 11
Machinery Directive 2006/42/EC replacing 98/37/EC
IEC 60529

CE Marking available
1 4 2

1. Frame Assembly
2. Bag In/Bag Out (BIBO) canister
3. Fan and Controls Assembly
4. Flexible Enclosure
5. Inlet Filter
6. Outlet Filter (behind BIBO canister)

Inlet Filter and BIBO Canister Location

MKT-0059 Rev A

www.doverpac.com customer_service@ilcdover.com Ph 1.302.335.3911 or 1.800.631.9567
ONE MOONW ALKER RD., FREDERICA, DELA W ARE USA 19946-2080
