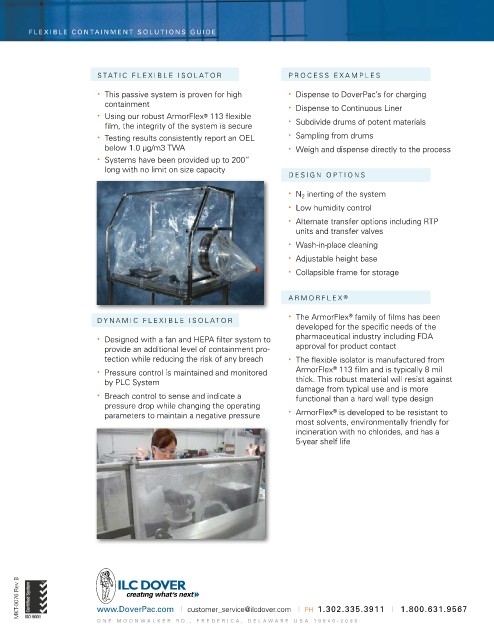

F lexible Containment Solution S Gui D e

sT AT i C fL exi BL e i s OLATO r Pr OC ess e x AMPL es

• This passive system is proven for high • Dispense to DoverPac’s for charging
containment
• Dispense to Continuous Liner
®
• using our robust Armorflex 113 flexible
film, the integrity of the system is secure • subdivide drums of potent materials
• Testing results consistently report an OeL • sampling from drums
below 1.0 µg/m3 TwA • weigh and dispense directly to the process
• systems have been provided up to 200”
long with no limit on size capacity
Desi G n O PT i O ns

• n inerting of the system
2
• Low humidity control
• Alternate transfer options including rTP
units and transfer valves
• wash-in-place cleaning

• Adjustable height base
• Collapsible frame for storage

Ar MO r fL ex ®
®
Dyn AM i C fL exi BL e i s OLATO r • The Armorflex family of films has been
developed for the specific needs of the
• Designed with a fan and hePA filter system to pharmaceutical industry including fDA
provide an additional level of containment pro- approval for product contact
tection while reducing the risk of any breach • The flexible isolator is manufactured from
®
• Pressure control is maintained and monitored Armorflex 113 film and is typically 8 mil
by PLC system thick. This robust material will resist against
damage from typical use and is more
• Breach control to sense and indicate a functional than a hard wall type design
pressure drop while changing the operating
®
parameters to maintain a negative pressure • Armorflex is developed to be resistant to
most solvents, environmentally friendly for
incineration with no chlorides, and has a
5-year shelf life

MKT-0076 rev B www.DoverPac.com | customer_service@ilcdover.com | Ph 1.302.335.3911 | 1.800.631.9567

one moon W al K e R RD., FR e D e R i C a , D ela W a R e u S a 19946-2080
