Y-1144 Vibro2011SPR_T-1129 Vibroscreen Brochure 3/7/11 4:55 PM Page 9

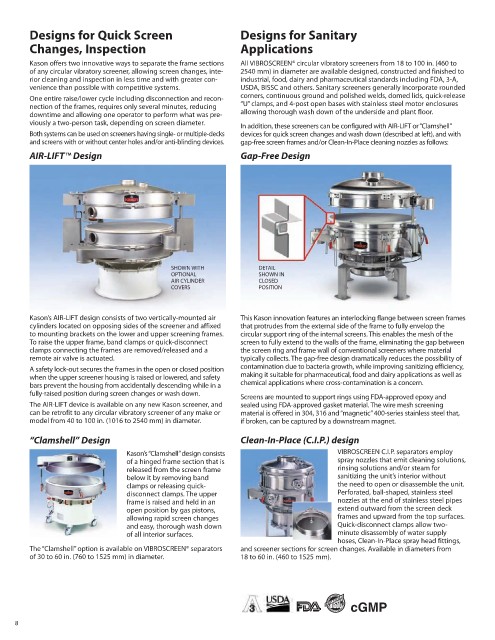

Designs for Quick Screen Designs for Sanitary
Changes, Inspection Applications
Kason offers two innovative ways to separate the frame sections All VIBROSCREEN® circular vibratory screeners from 18 to 100 in. (460 to
of any circular vibratory screener, allowing screen changes, inte- 2540 mm) in diameter are available designed, constructed and finished to
rior cleaning and inspection in less time and with greater con- industrial, food, dairy and pharmaceutical standards including FDA, 3-A,
venience than possible with competitive systems. USDA, BISSC and others. Sanitary screeners generally incorporate rounded
corners, continuous ground and polished welds, domed lids, quick-release
One entire raise/lower cycle including disconnection and recon-
nection of the frames, requires only several minutes, reducing “U” clamps, and 4-post open bases with stainless steel motor enclosures
downtime and allowing one operator to perform what was pre- allowing thorough wash down of the underside and plant floor.
viously a two-person task, depending on screen diameter.
In addition, these screeners can be configured with AIR-LIFT or “Clamshell”
Both systems can be used on screeners having single- or multiple-decks devices for quick screen changes and wash down (described at left), and with Removing
and screens with or without center holes and/or anti-blinding devices. gap-free screen frames and/or Clean-In-Place cleaning nozzles as follows: From Rins
The rinsewate
AIR-LIFT™ Design Gap-Free Design tank trucks ha
8% solidified
sewage dispo
environmenta
(1220 mm) VI
circular vibrat
mesh screen,
content by 50
(598 l/min) sa
month in sew
state and loca

SHOWN WITH DETAIL
OPTIONAL SHOWN IN
AIR CYLINDER CLOSED
COVERS POSITION

Kason’s AIR-LIFT design consists of two vertically-mounted air This Kason innovation features an interlocking flange between screen frames
cylinders located on opposing sides of the screener and affixed that protrudes from the external side of the frame to fully envelop the
to mounting brackets on the lower and upper screening frames. circular support ring of the internal screens. This enables the mesh of the Screening
To raise the upper frame, band clamps or quick-disconnect screen to fully extend to the walls of the frame, eliminating the gap between The manufac
clamps connecting the frames are removed/released and a the screen ring and frame wall of conventional screeners where material cal product p
using a 48 in.
remote air valve is actuated. typically collects. The gap-free design dramatically reduces the possibility of
deck VIBROSC
A safety lock-out secures the frames in the open or closed position contamination due to bacteria growth, while improving sanitizing efficiency, bines it with a
filler. Followin
when the upper screener housing is raised or lowered, and safety making it suitable for pharmaceutical, food and dairy applications as well as product is dri
bars prevent the housing from accidentally descending while in a chemical applications where cross-contamination is a concern. diameter circ
fully-raised position during screen changes or wash down. which an inte
Screens are mounted to support rings using FDA-approved epoxy and diameter, two
The AIR-LIFT device is available on any new Kason screener, and sealed using FDA-approved gasket material. The wire mesh screening separator (see
can be retrofit to any circular vibratory screener of any make or material is offered in 304, 316 and “magnetic” 400-series stainless steel that, agglomerates
model from 40 to 100 in. (1016 to 2540 mm) in diameter. if broken, can be captured by a downstream magnet. rate of 2000 l
“Clamshell” Design Clean-In-Place (C.I.P.) design
Kason’s “Clamshell” design consists VIBROSCREEN C.I.P. separators employ
of a hinged frame section that is spray nozzles that emit cleaning solutions,
released from the screen frame rinsing solutions and/or steam for
below it by removing band sanitizing the unit’s interior without
clamps or releasing quick- the need to open or disassemble the unit.
disconnect clamps. The upper Perforated, ball-shaped, stainless steel
frame is raised and held in an nozzles at the end of stainless steel pipes
open position by gas pistons, extend outward from the screen deck
allowing rapid screen changes frames and upward from the top surfaces.
and easy, thorough wash down Quick-disconnect clamps allow two-
of all interior surfaces. minute disassembly of water supply Classifyin
hoses, Clean-In-Place spray head fittings, A manufactu
The “Clamshell” option is available on VIBROSCREEN® separators and screener sections for screen changes. Available in diameters from abrasive addi
of 30 to 60 in. (760 to 1525 mm) in diameter. 18 to 60 in. (460 to 1525 mm). capacity limit
an existing m
dia) unit, with
(1520 mm dia
classifier (see
particles at th
upper screen
of the lower s
cGMP from the base
1200 to 1500
8
