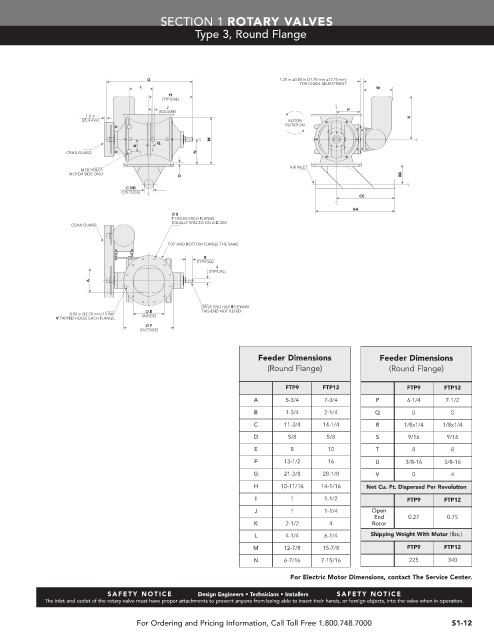

SECTION 1 ROTARY VALVES
Type 3, Round Flange

G 1.25 in ±0.50 in (31.75 mm ±12.70 mm)
FOR CHAIN ADJUSTMENT
L W
H
(TYPICAL)
J
(SQUARE) P
1.0 in X
(25.4 mm) ROTOR
ROTATION
M
Q
K
OSHA GUARD N
AIR INLET
U (3) HOLES
MOTOR SIDE ONLY BB
D
Ø DD
(OUTSIDE)
CC
AA
Ø S
T HOLES EACH FLANGE
EQUALLY SPACED ON A C DBC
OSHA GUARD
TOP AND BOTTOM FLANGE THE SAME
B
(TYPICAL)
I
(TYPICAL)
A

DRIVE END HAS R KEYWAY
Ø E THIS END NOT KEYED
0.50 in (12.70 mm) 13 TAP (INSIDE)
V TAPPED HOLES EACH FLANGE
Ø F
(OUTSIDE)

Feeder Dimensions Feeder Dimensions
(Round Flange) (Round Flange)

FTP9 FTP12 FTP9 FTP12

A 5-3/4 7-3/4 P 6-1/4 7-1/2
B 1-3/4 2-1/4 Q 0 0
C 11-3/4 14-1/4 R 1/8x1/4 1/8x1/4
D 5/8 5/8 S 9/16 9/16
E 8 10 T 8 8
F 13-1/2 16 U 3/8-16 3/8-16
G 21-3/8 28-1/8 V 0 4
H 10-11/16 14-1/16 Net Cu. Ft. Dispersed Per Revolution
I 1 1-1/2 FTP9 FTP12
J 1 1-1/4 Open
End 0.27 0.75
K 2-1/2 4 Rotor
L 4-1/4 6-1/4 Shipping Weight With Motor (lbs.)
M 12-7/8 15-7/8 FTP9 FTP12
N 6-7/16 7-15/16 225 340

For Electric Motor Dimensions, contact The Service Center.
SAF ETY NO TIC E Design Engineers • Technicians • Installers SAF ETY NO TIC E
The inlet and outlet of the rotary valve must have proper attachments to prevent anyone from being able to insert their hands, or foreign objects, into the valve when in operation.

For Ordering and Pricing Information, Call Toll Free 1.800.748.7000 S1-12
