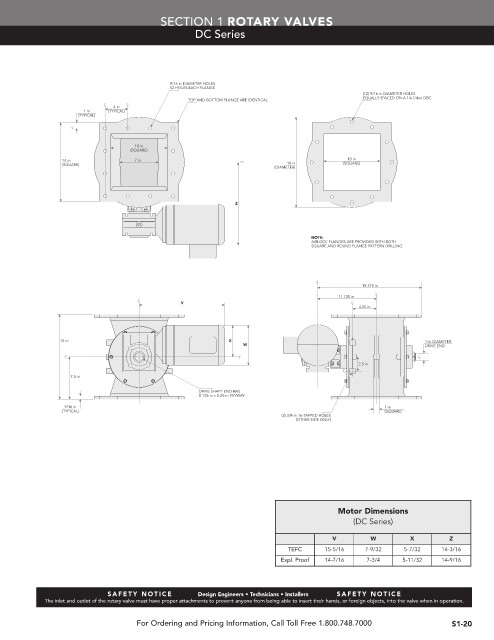

SECTION 1 ROTARY VALVES
DC Series

9/16 in DIAMETER HOLES
12 HOLES EACH FLANGE
(12) 9/16 in DIAMETER HOLES
EQUALLY SPACED ON A 14-1/4-in DBC
TOP AND BOTTOM FLANGE ARE IDENTICAL
4 in
1 in (TYPICAL)
(TYPICAL)
10 in
(SQUARE)
14 in 7 in. 10 in
(SQUARE) 16 in (SQUARE)
(DIAMETER)

Z

NOTE:
AIRLOCK FLANGES ARE PROVIDED WITH BOTH
SQUARE AND ROUND FLANGE PATTERN DRILLING.

19.375 in
11.125 in
V
4.25 in

15 in X 1-in DIAMETER
W DRIVE END

2.5 in
7.5 in
DRIVE SHAFT END HAS
0.125-in x 0.25-in KEYWAY
9/16 in 1-in
(TYPICAL) (SQUARE)
(3) 3/8-in 16-TAPPED HOLES
(OTHER SIDE ONLY)

Motor Dimensions
(DC Series)

V W X Z
TEFC 15-5/16 7-9/32 5-7/32 14-3/16
Expl. Proof 14-7/16 7-3/4 5-11/32 14-9/16

SAF ETY NO TIC E Design Engineers • Technicians • Installers SAF ETY NO TIC E
The inlet and outlet of the rotary valve must have proper attachments to prevent anyone from being able to insert their hands, or foreign objects, into the valve when in operation.
