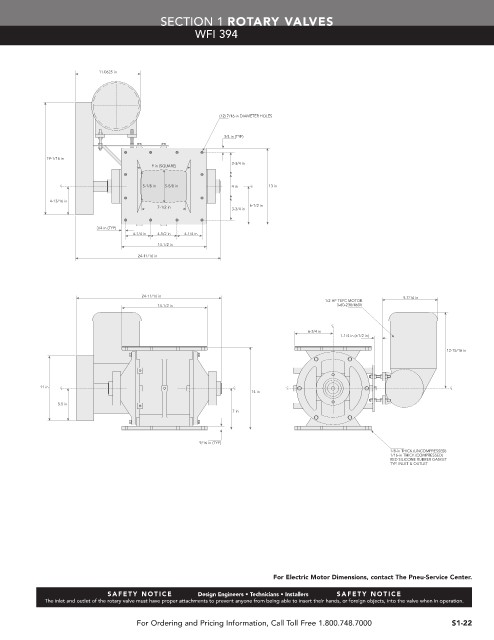

SECTION 1 ROTARY VALVES
WFI 394
11.0625 in
(12) 7/16-in DIAMETER HOLES
3/4 in (TYP)
19-1/16 in
3-3/4 in
9 in (SQUARE)
5-1/8 in 5-5/8 in 4 in 13 in
4-13/16 in
7-1/2 in 6-1/2 in
3-3/4 in
3/4 in (TYP)
4-1/4 in 4-1/2 in 4-1/4 in
14-1/2 in
24-11/16 in
24-11/16 in 9-7/16 in
1/2 HP TEFC MOTOR
14-1/2 in 3-60-230/460V
6-3/4 in
1-1/4 in (±1/2 in)
12-15/16 in
11 in
14 in
5.5 in
7 in
9/16 in (TYP)
1/8-in THICK (UNCOMPRESSED)
1/16-in THICK (COMPRESSED)
RED SILICONE RUBBER GASKET
TYP. INLET & OUTLET
For Electric Motor Dimensions, contact The Pneu-Service Center.
SAF ETY NO TIC E Design Engineers • Technicians • Installers SAF ETY NO TIC E
The inlet and outlet of the rotary valve must have proper attachments to prevent anyone from being able to insert their hands, or foreign objects, into the valve when in operation.
For Ordering and Pricing Information, Call Toll Free 1.800.748.7000 S1-22
