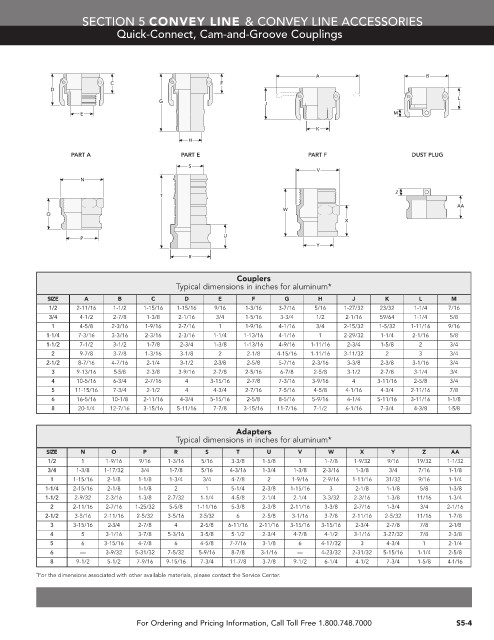

SECTION 5 CONVEY LINE & CONVEY LINE ACCESSORIES
Quick-Connect, Cam-and-Groove Couplings

A B
C F
D
L
G
J
E M
K
H

PART A PART E PART F DUST PLUG
S
V
N
Z
T
AA
W
O
X
U
P
Y
R

Couplers
Typical dimensions in inches for aluminum*
SIZE A B C D E F G H J K L M
1/2 2-11/16 1-1/2 1-15/16 1-15/16 9/16 1-3/16 3-7/16 5/16 1-27/32 23/32 1-1/4 7/16
3/4 4-1/2 2-7/8 1-3/8 2-1/16 3/4 1-5/16 3-3/4 1/2 2-1/16 59/64 1-1/4 5/8
1 4-5/8 2-3/16 1-9/16 2-7/16 1 1-9/16 4-1/16 3/4 2-15/32 1-5/32 1-11/16 9/16
1-1/4 7-3/16 3-3/16 2-3/16 2-3/16 1-1/4 1-13/16 4-1/16 1 2-29/32 1-1/4 2-1/16 5/8
1-1/2 7-1/2 3-1/2 1-7/8 2-3/4 1-3/8 1-13/16 4-9/16 1-11/16 2-3/4 1-5/8 2 3/4
2 9-7/8 3-7/8 1-3/16 3-1/8 2 2-1/8 4-15/16 1-11/16 3-11/32 2 3 3/4
2-1/2 8-7/16 4-7/16 2-1/4 3-1/2 2-3/8 2-5/8 5-7/16 2-3/16 3-3/8 2-3/8 3-1/16 3/4
3 9-13/16 5-5/8 2-3/8 3-9/16 2-7/8 2-5/16 6-7/8 2-5/8 3-1/2 2-7/8 3-1/4 3/4
4 10-5/16 6-3/4 2-7/16 4 3-15/16 2-7/8 7-3/16 3-9/16 4 3-11/16 2-5/8 3/4
5 11-15/16 7-3/4 2-1/2 4 4-3/4 2-7/16 7-5/16 4-5/8 4-1/16 4-3/4 2-11/16 7/8
6 16-5/16 10-1/8 2-11/16 4-3/4 5-15/16 2-5/8 8-5/16 5-9/16 4-1/4 5-11/16 3-11/16 1-1/8
8 20-1/4 12-7/16 3-15/16 5-11/16 7-7/8 3-15/16 11-7/16 7-1/2 6-1/16 7-3/4 4-3/8 1-5/8

Adapters
Typical dimensions in inches for aluminum*
SIZE N O P R S T U V W X Y Z AA
1/2 1 1-9/16 9/16 1-3/16 5/16 3-3/8 1-5/8 1 1-7/8 1-9/32 9/16 19/32 1-1/32
3/4 1-3/8 1-17/32 3/4 1-7/8 5/16 4-3/16 1-3/4 1-3/8 2-3/16 1-3/8 3/4 7/16 1-1/8
1 1-15/16 2-1/8 1-1/8 1-3/4 3/4 4-7/8 2 1-9/16 2-9/16 1-11/16 31/32 9/16 1-1/4
1-1/4 2-15/16 2-1/8 1-1/8 2 1 5-1/4 2-3/8 1-15/16 3 2-1/8 1-1/8 5/8 1-3/8
1-1/2 2-9/32 2-3/16 1-3/8 2-7/32 1-1/4 4-5/8 2-1/4 2-1/4 3-3/32 2-3/16 1-3/8 11/16 1-3/4
2 2-11/16 2-7/16 1-25/32 5-5/8 1-11/16 5-3/8 2-3/8 2-11/16 3-3/8 2-7/16 1-3/4 3/4 2-1/16
2-1/2 3-5/16 2-11/16 2-5/32 3-5/16 2-5/32 6 2-5/8 3-1/16 3-7/8 2-11/16 2-5/32 11/16 1-7/8
3 3-15/16 2-3/4 2-7/8 4 2-5/8 6-11/16 2-11/16 3-15/16 3-15/16 2-3/4 2-7/8 7/8 2-1/8
4 5 3-1/16 3-7/8 5-3/16 3-5/8 5-1/2 2-3/4 4-7/8 4-1/2 3-1/16 3-27/32 7/8 2-3/8
5 6 3-15/16 4-7/8 6 4-5/8 7-7/16 3-1/8 6 4-17/32 3 4-3/4 1 2-1/4
6 — 3-9/32 5-31/32 7-5/32 5-9/16 8-7/8 3-1/16 — 4-23/32 2-31/32 5-15/16 1-1/4 2-5/8
8 9-1/2 5-1/2 7-9/16 9-15/16 7-3/4 11-7/8 3-7/8 9-1/2 6-1/4 4-1/2 7-3/4 1-5/8 4-1/16
