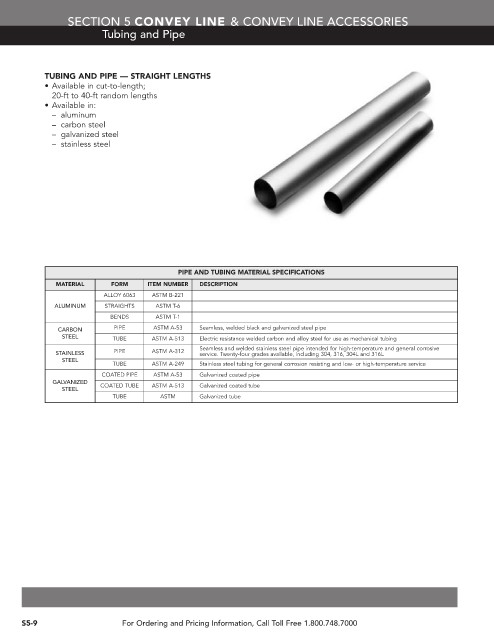

SECTION 5 CONVEY LINE & CONVEY LINE ACCESSORIES
Tubing and Pipe

TUBING AND PIPE — STRAIGHT LENGTHS
• Available in cut-to-length;
20-ft to 40-ft random lengths
• Available in:
– aluminum
– carbon steel
– galvanized steel
– stainless steel

PIPE AND TUBING MATERIAL SPECIFICATIONS
MATERIAL FORM ITEM NUMBER DESCRIPTION
ALLOY 6063 ASTM B-221
ALUMINUM STRAIGHTS ASTM T-6
BENDS ASTM T-1
CARBON PIPE ASTM A-53 Seamless, welded black and galvanized steel pipe
STEEL TUBE ASTM A-513 Electric resistance welded carbon and alloy steel for use as mechanical tubing
Seamless and welded stainless steel pipe intended for high-temperature and general corrosive
STAINLESS PIPE ASTM A-312 service. Twenty-four grades available, including 304, 316, 304L and 316L
STEEL
TUBE ASTM A-249 Stainless steel tubing for general corrosion resisting and low- or high-temperature service
COATED PIPE ASTM A-53 Galvanized coated pipe
GALVANIZED
COATED TUBE ASTM A-513 Galvanized coated tube
STEEL
TUBE ASTM Galvanized tube

S5-9 For Ordering and Pricing Information, Call Toll Free 1.800.748.7000
