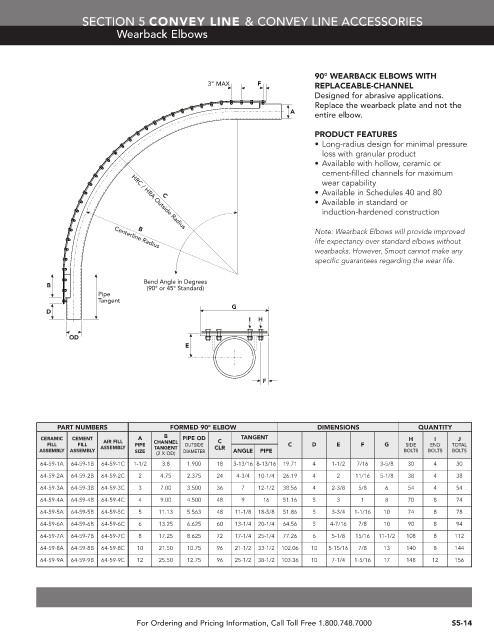

SECTION 5 CONVEY LINE & CONVEY LINE ACCESSORIES
Wearback Elbows

90° WEARBACK ELBOWS WITH
3” MAX F REPLACEABLE-CHANNEL
Designed for abrasive applications.
Replace the wearback plate and not the
A
entire elbow.
PRODUCT FEATURES
• Long-radius design for minimal pressure
loss with granular product
• Available with hollow, ceramic or
cement-filled channels for maximum
wear capability
• Available in Schedules 40 and 80
C
• Available in standard or
induction-hardened construction

HRC / HRA Outside Radius
Note: Wearback Elbows will provide improved
B
life expectancy over standard elbows without
Centerline Radius
wearbacks. However, Smoot cannot make any
specific guarantees regarding the wear life.
Bend Angle in Degrees
B (90° or 45° Standard)
Pipe
Tangent
G
D
I H

OD
E

F

PART NUMBERS FORMED 90° ELBOW DIMENSIONS QUANTITY
CERAMIC CEMENT AIR FILL A B PIPE OD C TANGENT H I J
FILL FILL PIPE CHANNEL OUTSIDE C D E F G SIDE END TOTAL
ASSEMBLY ASSEMBLY ASSEMBLY SIZE TANGENT DIAMETER CLR ANGLE PIPE BOLTS BOLTS BOLTS
(2 X OD)
64-59-1A 64-59-1B 64-59-1C 1-1/2 3.8 1.900 18 3-13/16 8-13/16 19.71 4 1-1/2 7/16 3-5/8 30 4 30
64-59-2A 64-59-2B 64-59-2C 2 4.75 2.375 24 4-3/4 10-1/4 26.19 4 2 11/16 5-1/8 38 4 38
64-59-3A 64-59-3B 64-59-3C 3 7.00 3.500 36 7 12-1/2 38.56 4 2-3/8 5/8 6 54 4 54
64-59-4A 64-59-4B 64-59-4C 4 9.00 4.500 48 9 16 51.16 5 3 1 8 70 8 74
64-59-5A 64-59-5B 64-59-5C 5 11.13 5.563 48 11-1/8 18-5/8 51.86 5 3-3/4 1-1/16 10 74 8 78
64-59-6A 64-59-6B 64-59-6C 6 13.25 6.625 60 13-1/4 20-1/4 64.56 5 4-7/16 7/8 10 90 8 94
64-59-7A 64-59-7B 64-59-7C 8 17.25 8.625 72 17-1/4 25-1/4 77.26 6 5-1/8 15/16 11-1/2 108 8 112
64-59-8A 64-59-8B 64-59-8C 10 21.50 10.75 96 21-1/2 33-1/2 102.06 10 5-15/16 7/8 13 140 8 144
64-59-9A 64-59-9B 64-59-9C 12 25.50 12.75 96 25-1/2 38-1/2 103.36 10 7-1/4 1-5/16 17 148 12 156
