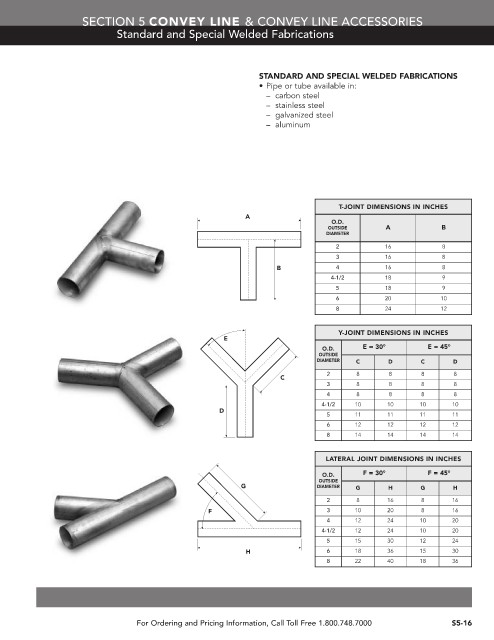

SECTION 5 CONVEY LINE & CONVEY LINE ACCESSORIES
Standard and Special Welded Fabrications

STANDARD AND SPECIAL WELDED FABRICATIONS
• Pipe or tube available in:
– carbon steel
– stainless steel
– galvanized steel
– aluminum

T-JOINT DIMENSIONS IN INCHES
A
O.D.
OUTSIDE A B
DIAMETER
2 16 8
3 16 8
B 4 16 8
4-1/2 18 9
5 18 9
6 20 10
8 24 12

Y-JOINT DIMENSIONS IN INCHES
E
O.D. E = 30° E = 45°
OUTSIDE
DIAMETER C D C D

2 8 8 8 8
C
3 8 8 8 8
4 8 8 8 8
4-1/2 10 10 10 10
D
5 11 11 11 11
6 12 12 12 12
8 14 14 14 14

LATERAL JOINT DIMENSIONS IN INCHES

O.D. F = 30° F = 45°
OUTSIDE
G DIAMETER G H G H
2 8 16 8 16
F 3 10 20 8 16
4 12 24 10 20
4-1/2 12 24 10 20
5 15 30 12 24
H 6 18 36 15 30
8 22 40 18 36

For Ordering and Pricing Information, Call Toll Free 1.800.748.7000 S5-16
