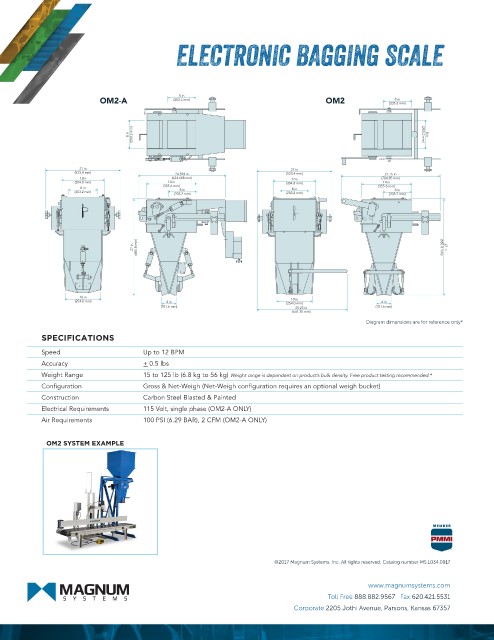

ELECTRONIC BAGGING SCALE

8 in
8 in
OM2-A (203.2 mm) OM2 (203.2 mm)

(203.2 mm) 8 in
8 in (203.2 mm)

21 in 21 in
(533.4 mm) 24.594 in (533.4 mm) 27.75 in
12in (624.688 mm) 12in (704.85 mm)
(304.8 mm) 14 in (304.8 mm) 14 in
8 in (355.6 mm) 8 in 8 in (355.6 mm)
8 in
(203.2 mm) (203.2 mm) (203.2 mm) (203.2 mm)

(685.8 mm) (685.8 mm) 27 in
27 in

10 in
10 in
(254.0 mm) 4 in (254.0 mm) 4 in
(101.6 mm) 25.25 in (101.6 mm)
(641.35 mm)
Diagram dimensions are for reference only*
SPECIFICATIONS
Speed Up to 12 BPM
Accuracy + 0.5 lbs
Weight Range 15 to 125 lb (6.8 kg to 56 kg) Weight range is dependent on product’s bulk density. Free product testing recommended.*
Configuration Gross & Net-Weigh (Net-Weigh configuration requires an optional weigh bucket)
Construction Carbon Steel Blasted & Painted
Electrical Requirements 115 Volt, single phase (OM2-A ONLY)
Air Requirements 100 PSI (6.29 BAR), 2 CFM (OM2-A ONLY)

OM2 SYSTEM EXAMPLE
