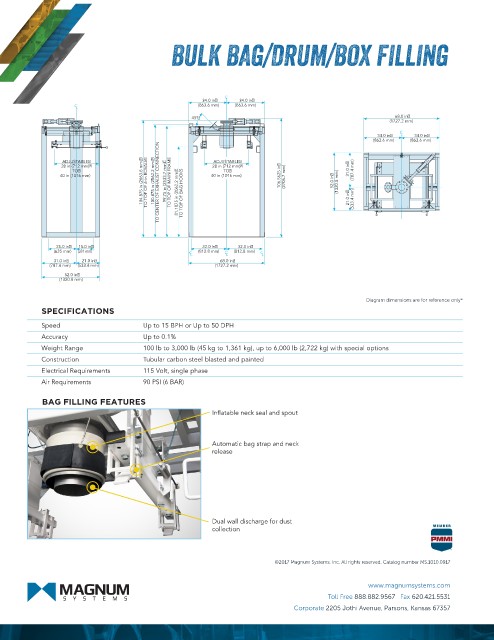

BULK BAG/DRUM/BOX FILLING

34.0 in 34.0 in
(863.6 mm) (863.6 mm)
45° 68.0 in
(1727.2 mm)
34.0 in 34.0 in
(863.6 mm) (863.6 mm)
104.875 in (2663.8 mm) TO TOP OF 6-in ROVALVE 100.875 in (2562.2 mm) TO CENTER OF EXHAUST CONNECTION 99.75 in (2533.7 mm) TO TOP OF MAIN FRAME 81.1875 in (2062.2 mm) TO TOP OF BAG HOOKS 52.0 in (1320.8 mm) 21.0 in (533.4 mm)
ADJUSTABLE ADJUSTABLE
28 in (712 mm) 28 in (712 mm)
TO TO 31.0 in (787.4 mm)
40 in (1016 mm) 40 in (1016 mm) 106.5625 in (2706.7 mm)

25.0 in 15.0 in 32.0 in 32.0 in
(635 mm) (381 mm) (812.8 mm) (812.8 mm)
31.0 in 21.0 in 68.0 in
(787.4 mm) (533.4 mm) (1727.2 mm)
52.0 in
(1320.8 mm)

Diagram dimensions are for reference only*
SPECIFICATIONS

Speed Up to 15 BPH or Up to 50 DPH
Accuracy Up to 0.1%
Weight Range 100 lb to 3,000 lb (45 kg to 1,361 kg), up to 6,000 lb (2,722 kg) with special options
Construction Tubular carbon steel blasted and painted
Electrical Requirements 115 Volt, single phase
Air Requirements 90 PSI (6 BAR)

BAG FILLING FEATURES
Inflatable neck seal and spout

Automatic bag strap and neck
release

Dual wall discharge for dust
collection

©2017 Magnum Systems, Inc. All rights reserved. Catalog number MS.1010.0917

www.magnumsystems.com
Toll Free 888.882.9567 Fax 620.421.5531
Corporate 2205 Jothi Avenue, Parsons, Kansas 67357
