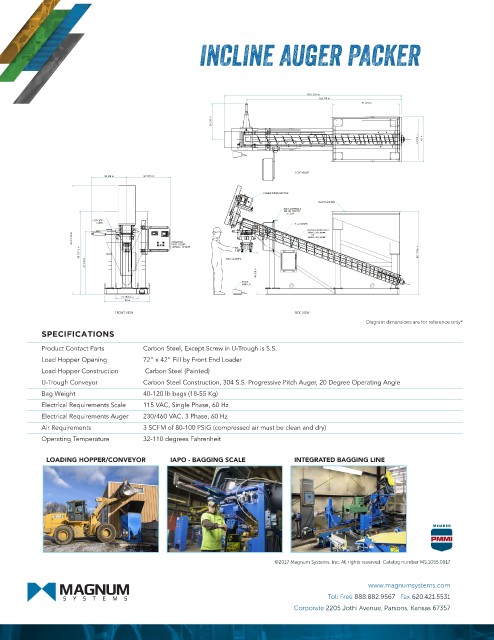

INCLINE AUGER PACKER

190 13/16 in
166 7/8 in
71 3/4 in
38 3/8 in

43 3/4 in 48 in

TOP VIEW
38 3/8 in 46 9/16 in

AUGER DRIVE MOTOR
INLET HOPPER
AIR CONTROLS
FRL 80-100 PSI
5 CFM
CUT-OFF
GATE 9 in AUGER
MOTOR CONTROL ENCL.
230VAC, 3PH, 40AMP
116 15/16 in DROP POWER ON OFF ON CONTROL 460VAC, 3PH, 20AMP
OR
ENCLOSURE
88 15/16 in 120VAC, 10 AMP 88 11/16 in
67 7/8 in BAG CLAMPS
45 3/8 in
FOOT
SWITCH
23 15/16 in
48 in
FRONT VIEW SIDE VIEW
Diagram dimensions are for reference only*
SPECIFICATIONS
Product Contact Parts Carbon Steel, Except Screw in U-Trough is S.S.
Load Hopper Opening 72” x 42” Fill by Front End Loader
Load Hopper Construction Carbon Steel (Painted)
U-Trough Conveyor Carbon Steel Construction, 304 S.S. Progressive Pitch Auger, 20 Degree Operating Angle
Bag Weight 40-120 lb bags (18-55 Kg)
Electrical Requirements Scale 115 VAC, Single Phase, 60 Hz
Electrical Requirements Auger 230/460 VAC, 3 Phase, 60 Hz
Air Requirements 3 SCFM of 80-100 PSIG (compressed air must be clean and dry)
Operating Temperature 32-110 degrees Fahrenheit

LOADING HOPPER/CONVEYOR IAPO - BAGGING SCALE INTEGRATED BAGGING LINE
