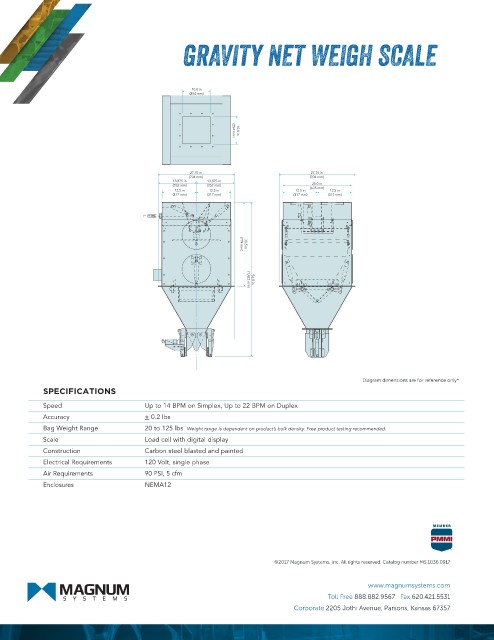

GRAVITY NET WEIGH SCALE

10.0 in
(254 mm) (254 mm) 10.0 in

27.75 in 27.75 in
(704 mm) (704 mm)
13.875 in 13.875 in
25.0 in
(352 mm) (352 mm) (635 mm)
12.5 in 12.5 in 12.5 in 12.5 in
(317 mm) (317 mm) (774 mm) 30.5 in (1,422 mm) 56.0 in (317 mm) (317 mm)

Diagram dimensions are for reference only*
SPECIFICATIONS
Speed Up to 14 BPM on Simplex, Up to 22 BPM on Duplex
Accuracy + 0.2 lbs
Bag Weight Range 20 to 125 lbs Weight range is dependent on product’s bulk density. Free product testing recommended.
Scale Load cell with digital display
Construction Carbon steel blasted and painted
Electrical Requirements 120 Volt, single phase
Air Requirements 90 PSI, 5 cfm
Enclosures NEMA12
