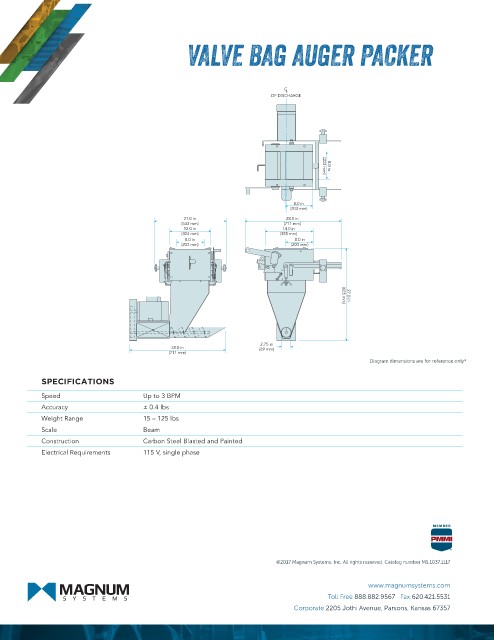

VALVE BAG AUGER PACKER

C L
OF DISCHARGE

8.0 in (203 mm) 8.0 in
(203 mm)
21.0 in 28.0 in
(533 mm) (711 mm)
12.0 in 14.0 in
(304 mm) (355 mm)
8.0 in 8.0 in
(203 mm) (203 mm)

2.75 in (685 mm) 27.0 in
28.0 in (69 mm)
(711 mm)
Diagram dimensions are for reference only*
SPECIFICATIONS

Speed Up to 3 BPM
Accuracy ± 0.4 lbs
Weight Range 15 – 125 lbs
Scale Beam
Construction Carbon Steel Blasted and Painted
Electrical Requirements 115 V, single phase
