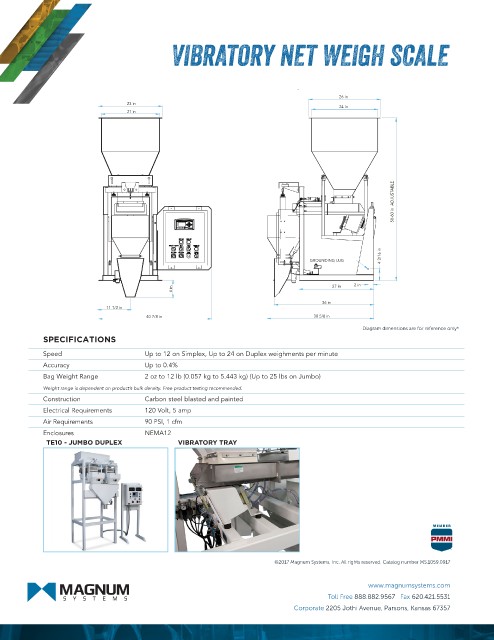

VIBRATORY NET WEIGH SCALE

26 in
23 in
24 in
21 in

58-60 in ADJUSTABLE

SP-1 ON SP-2 ON
SP-1 ON SP-2 ON
DISPLAY SELECT SP-1 SP-2 POWER ON
SP-1 SP-2 POWER ON
STOP
1ST RATE 2ND RATE STOP POWER
OFF ON
3 4 5 6 7 8 4 5 6 3 7 8
2 9 2 9
1 1 4 3/16 in
10 10
GROUNDING LUG
6 in 27 in 2 in
36 in
11 1/2 in
40 7/8 in 38 5/8 in
Diagram dimensions are for reference only*
SPECIFICATIONS
Speed Up to 12 on Simplex, Up to 24 on Duplex weighments per minute
Accuracy Up to 0.4%
Bag Weight Range 2 oz to 12 lb (0.057 kg to 5.443 kg) (Up to 25 lbs on Jumbo)
Weight range is dependent on product’s bulk density. Free product testing recommended.
Construction Carbon steel blasted and painted
Electrical Requirements 120 Volt, 5 amp
Air Requirements 90 PSI, 1 cfm
Enclosures NEMA12
TE10 - JUMBO DUPLEX VIBRATORY TRAY
