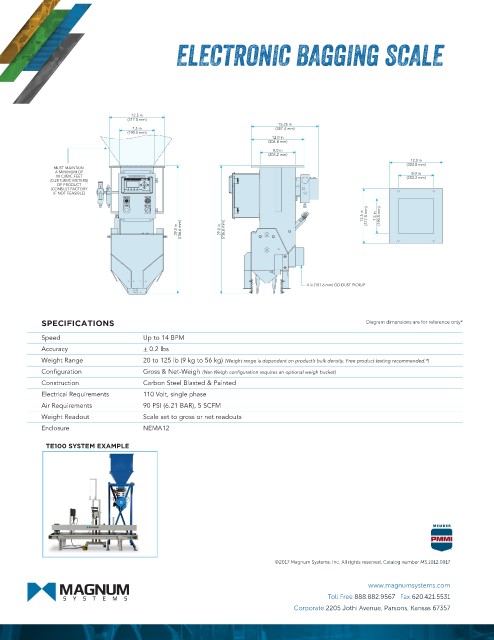

ELECTRONIC BAGGING SCALE

12.5 in
(317.5 mm)
15.25 in
7.5 in (387.4 mm)
(190.5 mm)
12.0 in
(304.8 mm)
8.0 in
(203.2 mm)
12.0 in
(304.8 mm)
MUST MAINTAIN
A MINIMUM OF 8.0 in
10 CUBIC FEET (203.2 mm)
(0.28 CUBIC METERS)
OF PRODUCT
(CONSULT FACTORY
IF NOT FEASIBLE)
12.5 in (317.5 mm) 7.5 in (190.5 mm)
29.0 in (736.6 mm) 29.0 in (736.6 mm)

4 in (101.6 mm) OD DUST PICKUP

SPECIFICATIONS Diagram dimensions are for reference only*

Speed Up to 14 BPM
Accuracy + 0.2 lbs
Weight Range 20 to 125 lb (9 kg to 56 kg) (Weight range is dependent on product’s bulk density. Free product testing recommended.*)
Configuration Gross & Net-Weigh (Net-Weigh configuration requires an optional weigh bucket)
Construction Carbon Steel Blasted & Painted
Electrical Requirements 110 Volt, single phase
Air Requirements 90 PSI (6.21 BAR), 5 SCFM
Weight Readout Scale set to gross or net readouts
Enclosure NEMA12
TE100 SYSTEM EXAMPLE

©2017 Magnum Systems, Inc. All rights reserved. Catalog number MS.1012.0917

www.magnumsystems.com
Toll Free 888.882.9567 Fax 620.421.5531
Corporate 2205 Jothi Avenue, Parsons, Kansas 67357
