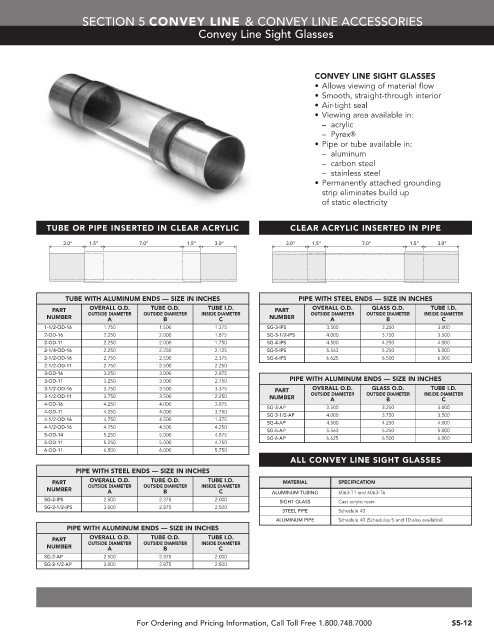

SECTION 5 CONVEY LINE & CONVEY LINE ACCESSORIES
Convey Line Sight Glasses

CONVEY LINE SIGHT GLASSES
• Allows viewing of material flow
• Smooth, straight-through interior
• Air-tight seal
• Viewing area available in:
– acrylic
– Pyrex®
• Pipe or tube available in:
– aluminum
– carbon steel
– stainless steel
• Permanently attached grounding
strip eliminates build up
of static electricity

TUBE OR PIPE INSERTED IN CLEAR ACRYLIC CLEAR ACRYLIC INSERTED IN PIPE

3.0” 1.5” 7.0” 1.5” 3.0” 3.0” 1.5” 7.0” 1.5” 3.0”

TUBE WITH ALUMINUM ENDS — SIZE IN INCHES PIPE WITH STEEL ENDS — SIZE IN INCHES
OVERALL O.D.
OVERALL O.D.
TUBE O.D.
TUBE I.D.
TUBE I.D.
GLASS O.D.
PART OUTSIDE DIAMETER OUTSIDE DIAMETER INSIDE DIAMETER PART OUTSIDE DIAMETER OUTSIDE DIAMETER INSIDE DIAMETER
NUMBER A B C NUMBER A B C
1-1/2-OD-16 1.750 1.500 1.375 SG-3-IPS 3.500 3.250 3.000
2-OD-16 2.250 2.000 1.875 SG-3-1/2-IPS 4.000 3.750 3.500
2-OD-11 2.250 2.000 1.750 SG-4-IPS 4.500 4.250 4.000
2-1/4-OD-16 2.250 2.250 2.125 SG-5-IPS 5.563 5.250 5.000
2-1/2-OD-16 2.750 2.500 2.375 SG-6-IPS 6.625 6.500 6.000
2-1/2-OD-11 2.750 2.500 2.250
3-OD-16 3.250 3.000 2.875
3-OD-11 3.250 3.000 2.750 PIPE WITH ALUMINUM ENDS — SIZE IN INCHES
3-1/2-OD-16 3.750 3.500 3.375 PART OVERALL O.D. GLASS O.D. TUBE I.D.
3-1/2-OD-11 3.750 3.500 2.250 NUMBER OUTSIDE DIAMETER OUTSIDE DIAMETER INSIDE DIAMETER
B
A
C
4-OD-16 4.250 4.000 3.875
SG-3-AP 3.500 3.250 3.000
4-OD-11 4.250 4.000 3.750
SG-3-1/2-AP 4.000 3.750 3.500
4-1/2-OD-16 4.750 4.500 1.375
SG-4-AP 4.500 4.250 4.000
4-1/2-OD-16 4.750 4.500 4.250
SG-5-AP 5.563 5.250 5.000
5-OD-14 5.250 5.000 4.875
SG-6-AP 6.625 6.500 6.000
5-OD-11 5.250 5.000 4.750
6-OD-11 6.500 6.000 5.750
ALL CONVEY LINE SIGHT GLASSES
PIPE WITH STEEL ENDS — SIZE IN INCHES
PART OVERALL O.D. TUBE O.D. TUBE I.D. MATERIAL SPECIFICATION
NUMBER OUTSIDE DIAMETER OUTSIDE DIAMETER INSIDE DIAMETER ALUMINUM TUBING 6063-T1 and 6063-T6
C
B
A
SG-2-IPS 2.500 2.375 2.000
SIGHT GLASS Cast acrylic resin
SG-2-1/2-IPS 3.000 2.875 2.500
STEEL PIPE Schedule 40
ALUMINUM PIPE Schedule 40 (Schedules 5 and 10 also available)
PIPE WITH ALUMINUM ENDS — SIZE IN INCHES
TUBE O.D.
TUBE I.D.
OVERALL O.D.
PART OUTSIDE DIAMETER OUTSIDE DIAMETER INSIDE DIAMETER
NUMBER A B C
SG-2-AP 2.500 2.375 2.000
SG-2-1/2-AP 3.000 2.875 2.500
For Ordering and Pricing Information, Call Toll Free 1.800.748.7000 S5-12
