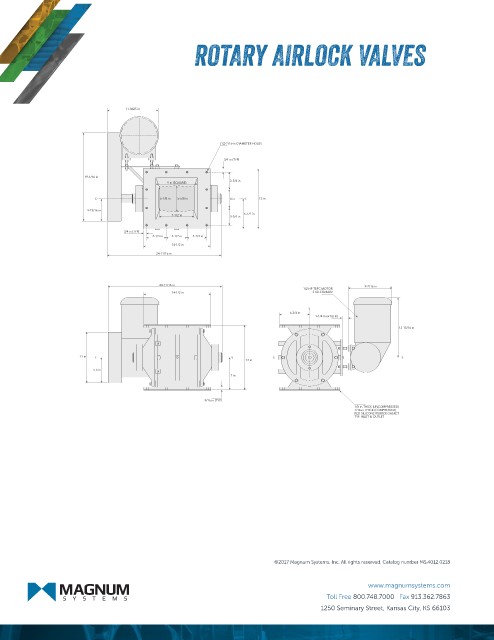

ROTARY AIRLOCK VALVES

11.0625 in

(12) 7/16-in DIAMETER HOLES
3/4 in (TYP)

19-1/16 in
3-3/4 in
9 in (SQUARE)
5-1/8 in 5-5/8 in 4 in 13 in
4-13/16 in
7-1/2 in 6-1/2 in
3-3/4 in
3/4 in (TYP)
4-1/4 in 4-1/2 in 4-1/4 in
14-1/2 in
24-11/16 in

24-11/16 in 9-7/16 in
1/2 HP TEFC MOTOR
14-1/2 in 3-60-230/460V
6-3/4 in
1-1/4 in (±1/2 in)
12-15/16 in

11 in
14 in
5.5 in
7 in

9/16 in (TYP)
1/8-in THICK (UNCOMPRESSED)
1/16-in THICK (COMPRESSED)
RED SILICONE RUBBER GASKET
TYP. INLET & OUTLET
