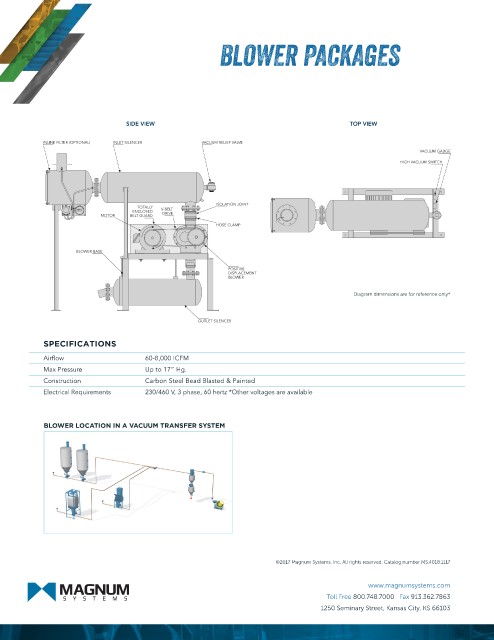

BLOWER PACKAGES
SIDE VIEW TOP VIEW
INLINE FILTER (OPTIONAL) INLET SILENCER VACUUM RELIEF VALVE
VACUUM GAUGE
HIGH VACUUM SWITCH
ISOLATION JOINT
TOTALLY V-BELT
ENCLOSED DRIVE
MOTOR BELT GUARD
HOSE CLAMP
BLOWER BASE
POSITIVE
DISPLACEMENT
BLOWER
Diagram dimensions are for reference only*
OUTLET SILENCER
SPECIFICATIONS
Airflow 60-8,000 ICFM
Max Pressure Up to 17” Hg.
Construction Carbon Steel Bead Blasted & Painted
Electrical Requirements 230/460 V, 3 phase, 60 hertz *Other voltages are available
BLOWER LOCATION IN A VACUUM TRANSFER SYSTEM
