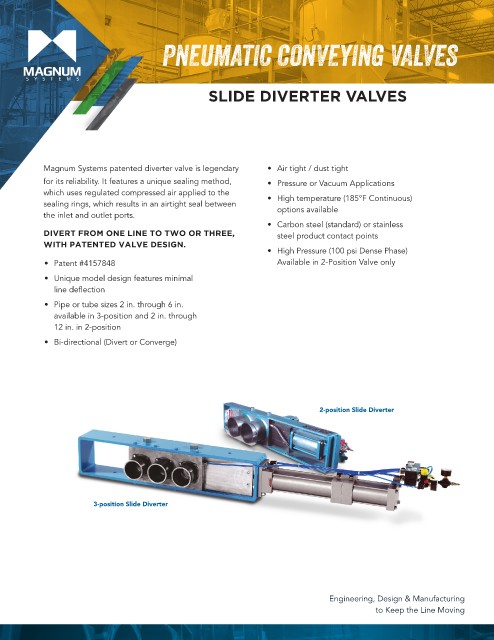

PNEUMATIC CONVEYING VALVES

SLIDE DIVERTER VALVES

Magnum Systems patented diverter valve is legendary • Air tight / dust tight
for its reliability. It features a unique sealing method, • Pressure or Vacuum Applications
which uses regulated compressed air applied to the • High temperature (185°F Continuous)
sealing rings, which results in an airtight seal between options available
the inlet and outlet ports.
• Carbon steel (standard) or stainless
DIVERT FROM ONE LINE TO TWO OR THREE, steel product contact points
WITH PATENTED VALVE DESIGN.
• High Pressure (100 psi Dense Phase)
• Patent #4157848 Available in 2-Position Valve only
• Unique model design features minimal
line deflection
• Pipe or tube sizes 2 in. through 6 in.
available in 3-position and 2 in. through
12 in. in 2-position
• Bi-directional (Divert or Converge)

2-position Slide Diverter

3-position Slide Diverter

Engineering, Design & Manufacturing
to Keep the Line Moving
