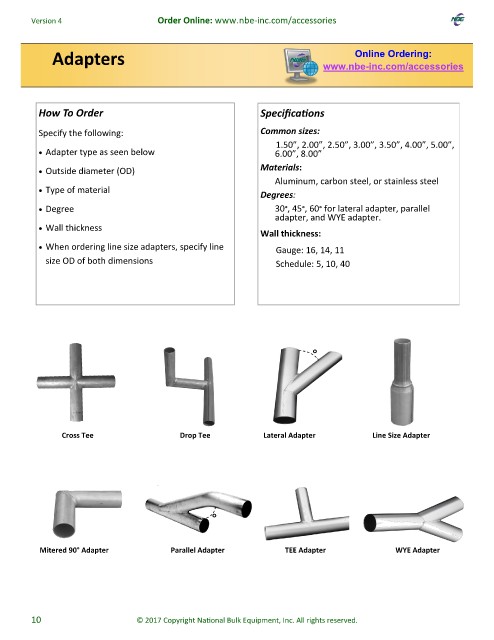

Version 4 Order Online: www.nbe-inc.com/accessories

Adapters Online Ordering:
www.nbe-inc.com/accessories

How To Order Specifications

Specify the following: Common sizes:
1.50”, 2.00”, 2.50”, 3.00”, 3.50”, 4.00”, 5.00”,
 Adapter type as seen below 6.00”, 8.00”

 Outside diameter (OD) Materials:
Aluminum, carbon steel, or stainless steel
 Type of material
Degrees:
 Degree 30°, 45°, 60° for lateral adapter, parallel
adapter, and WYE adapter.
 Wall thickness
Wall thickness:
 When ordering line size adapters, specify line Gauge: 16, 14, 11
size OD of both dimensions Schedule: 5, 10, 40

°

Cross Tee Drop Tee Lateral Adapter Line Size Adapter

°

Mitered 90° Adapter Parallel Adapter TEE Adapter WYE Adapter

10 © 2017 Copyright National Bulk Equipment, Inc. All rights reserved.
