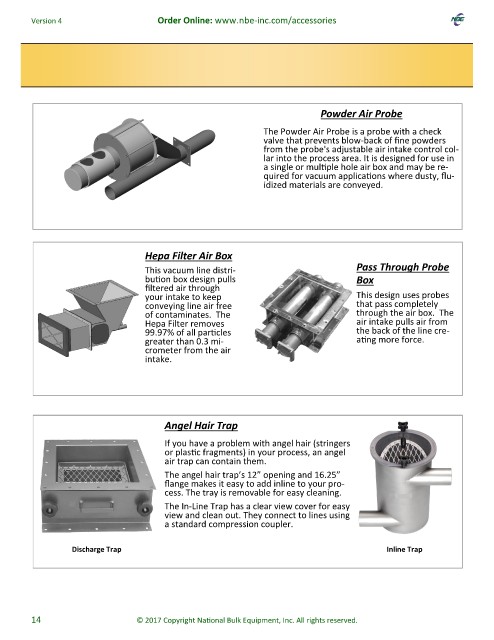

Page 2844 - Flipbook_SolidDesignSoutheast2020

Version 4 Order Online: www.nbe-inc.com/accessories

Powder Air Probe

The Powder Air Probe is a probe with a check
valve that prevents blow-back of fine powders
from the probe's adjustable air intake control col-
lar into the process area. It is designed for use in
a single or multiple hole air box and may be re-
quired for vacuum applications where dusty, flu-
idized materials are conveyed.

Hepa Filter Air Box
This vacuum line distri- Pass Through Probe
bution box design pulls Box
filtered air through
your intake to keep This design uses probes
conveying line air free that pass completely
of contaminates. The through the air box. The
Hepa Filter removes air intake pulls air from
99.97% of all particles the back of the line cre-
greater than 0.3 mi- ating more force.
crometer from the air
intake.

Angel Hair Trap

If you have a problem with angel hair (stringers
or plastic fragments) in your process, an angel
air trap can contain them.
The angel hair trap’s 12” opening and 16.25”
flange makes it easy to add inline to your pro-
cess. The tray is removable for easy cleaning.
The In-Line Trap has a clear view cover for easy
view and clean out. They connect to lines using
a standard compression coupler.

Discharge Trap Inline Trap

14 © 2017 Copyright National Bulk Equipment, Inc. All rights reserved.
