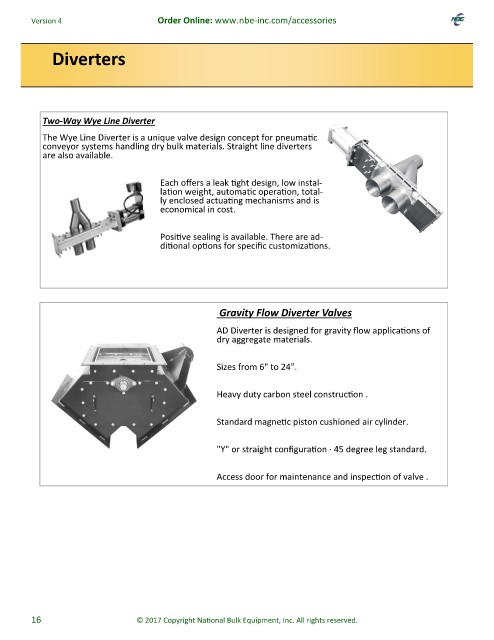

Diverters

Two-Way Wye Line Diverter

The Wye Line Diverter is a unique valve design concept for pneumatic
conveyor systems handling dry bulk materials. Straight line diverters
are also available.

Each offers a leak tight design, low instal-
lation weight, automatic operation, total-
ly enclosed actuating mechanisms and is
economical in cost.

Positive sealing is available. There are ad-
ditional options for specific customizations.

Gravity Flow Diverter Valves
AD Diverter is designed for gravity flow applications of
dry aggregate materials.

Sizes from 6" to 24".

Heavy duty carbon steel construction .

Standard magnetic piston cushioned air cylinder.

"Y" or straight configuration · 45 degree leg standard.

Access door for maintenance and inspection of valve .
