Call (616) 738-7234 for Component Sales Version 4

Online Ordering:

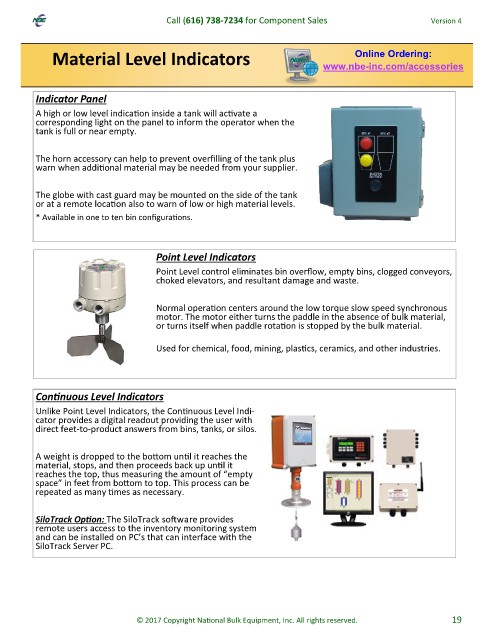

Material Level Indicators www.nbe-inc.com/accessories

Indicator Panel

A high or low level indication inside a tank will activate a
corresponding light on the panel to inform the operator when the
tank is full or near empty.

The horn accessory can help to prevent overfilling of the tank plus
warn when additional material may be needed from your supplier.

The globe with cast guard may be mounted on the side of the tank
or at a remote location also to warn of low or high material levels.
* Available in one to ten bin configurations.

Point Level Indicators
Point Level control eliminates bin overflow, empty bins, clogged conveyors,
choked elevators, and resultant damage and waste.

Normal operation centers around the low torque slow speed synchronous
motor. The motor either turns the paddle in the absence of bulk material,
or turns itself when paddle rotation is stopped by the bulk material.

Used for chemical, food, mining, plastics, ceramics, and other industries.

Continuous Level Indicators
Unlike Point Level Indicators, the Continuous Level Indi-
cator provides a digital readout providing the user with
direct feet-to-product answers from bins, tanks, or silos.

A weight is dropped to the bottom until it reaches the
material, stops, and then proceeds back up until it
reaches the top, thus measuring the amount of “empty
space” in feet from bottom to top. This process can be
repeated as many times as necessary.

SiloTrack Option: The SiloTrack software provides
remote users access to the inventory monitoring system
and can be installed on PC’s that can interface with the
SiloTrack Server PC.

© 2017 Copyright National Bulk Equipment, Inc. All rights reserved. 19
