Call (616) 738-7234 for Component Sales Version 4

Online Ordering:

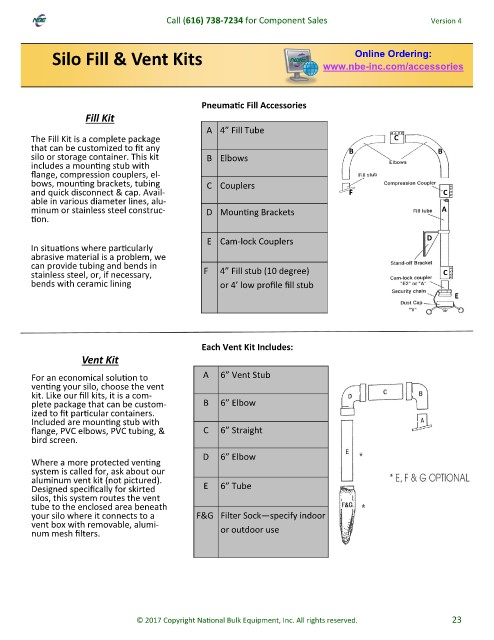

Silo Fill & Vent Kits www.nbe-inc.com/accessories

Pneumatic Fill Accessories
Fill Kit
A 4” Fill Tube
The Fill Kit is a complete package C
that can be customized to fit any B B
silo or storage container. This kit B Elbows
includes a mounting stub with
flange, compression couplers, el-
bows, mounting brackets, tubing C Couplers
and quick disconnect & cap. Avail- F C
able in various diameter lines, alu-
minum or stainless steel construc- D Mounting Brackets A
tion.

E Cam-lock Couplers D
In situations where particularly
abrasive material is a problem, we
can provide tubing and bends in
stainless steel, or, if necessary, F 4” Fill stub (10 degree) C
bends with ceramic lining or 4’ low profile fill stub
E

Each Vent Kit Includes:

Vent Kit

For an economical solution to A 6” Vent Stub
venting your silo, choose the vent
kit. Like our fill kits, it is a com-
plete package that can be custom- B 6” Elbow
ized to fit particular containers.
Included are mounting stub with
flange, PVC elbows, PVC tubing, & C 6” Straight
bird screen.

D 6” Elbow
Where a more protected venting
system is called for, ask about our
aluminum vent kit (not pictured).
Designed specifically for skirted E 6” Tube
silos, this system routes the vent
tube to the enclosed area beneath
your silo where it connects to a F&G Filter Sock—specify indoor
vent box with removable, alumi-
num mesh filters. or outdoor use

© 2017 Copyright National Bulk Equipment, Inc. All rights reserved. 23
