Version 4 Order Online: www.nbe-inc.com/accessories

Online Ordering:

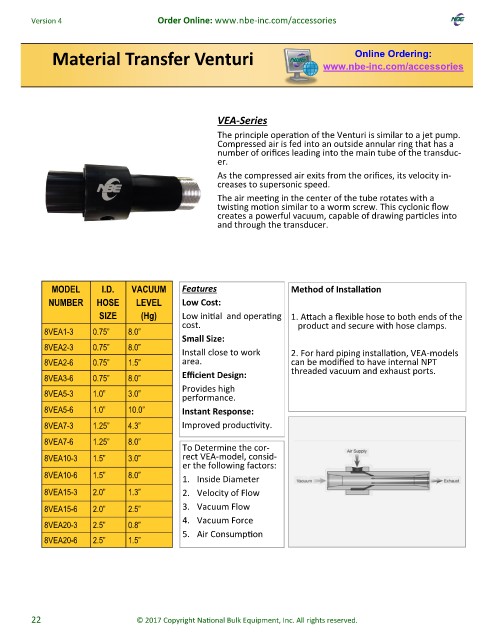

Material Transfer Venturi www.nbe-inc.com/accessories

VEA-Series
The principle operation of the Venturi is similar to a jet pump.
Compressed air is fed into an outside annular ring that has a
number of orifices leading into the main tube of the transduc-
er.
As the compressed air exits from the orifices, its velocity in-
creases to supersonic speed.
The air meeting in the center of the tube rotates with a
twisting motion similar to a worm screw. This cyclonic flow
creates a powerful vacuum, capable of drawing particles into
and through the transducer.

MODEL I.D. VACUUM Features Method of Installation
NUMBER HOSE LEVEL Low Cost:
SIZE (Hg) Low initial and operating 1. Attach a flexible hose to both ends of the
cost. product and secure with hose clamps.
8VEA1-3 0.75” 8.0”
Small Size:
8VEA2-3 0.75” 8.0”
Install close to work 2. For hard piping installation, VEA-models
8VEA2-6 0.75” 1.5” area. can be modified to have internal NPT
threaded vacuum and exhaust ports.
8VEA3-6 0.75” 8.0” Efficient Design:
Provides high
8VEA5-3 1.0” 3.0”
performance.
8VEA5-6 1.0” 10.0” Instant Response:
8VEA7-3 1.25” 4.3” Improved productivity.

8VEA7-6 1.25” 8.0”
To Determine the cor-
8VEA10-3 1.5” 3.0” rect VEA-model, consid-
er the following factors:
8VEA10-6 1.5” 8.0”
1. Inside Diameter
8VEA15-3 2.0” 1.3” 2. Velocity of Flow

8VEA15-6 2.0” 2.5” 3. Vacuum Flow
8VEA20-3 2.5” 0.8” 4. Vacuum Force
5. Air Consumption
8VEA20-6 2.5” 1.5”

22 © 2017 Copyright National Bulk Equipment, Inc. All rights reserved.
