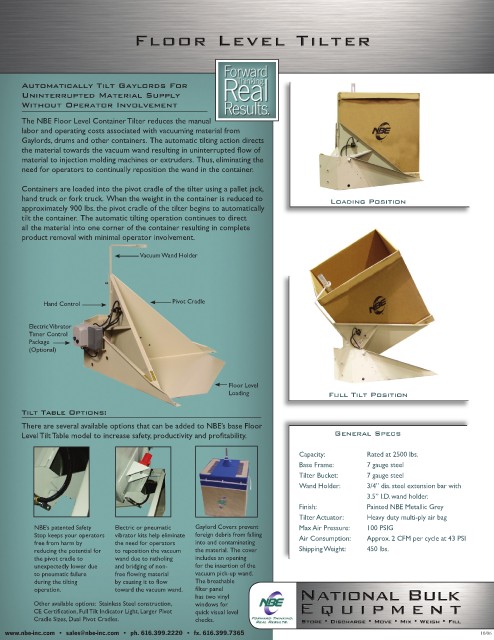

Automatically Tilt Gaylords For
Uninterrupted Material Supply
Without Operator Involvement
The NBE Floor Level Container Tilter reduces the manual
labor and operating costs associated with vacuuming material from
Gaylords, drums and other containers. The automatic tilting action directs
the material towards the vacuum wand resulting in uninterrupted flow of
material to injection molding machines or extruders. Thus, eliminating the
need for operators to continually reposition the wand in the container.
Containers are loaded into the pivot cradle of the tilter using a pallet jack,
hand truck or fork truck. When the weight in the container is reduced to Loading Position
approximately 900 lbs. the pivot cradle of the tilter begins to automatically
tilt the container. The automatic tilting operation continues to direct
all the material into one corner of the container resulting in complete
product removal with minimal operator involvement.

Vacuum Wand Holder

Hand Control Pivot Cradle

Electric Vibrator
Timer Control
Package
(Optional)

Floor Level
Loading Full Tilt Position

Tilt Table Options:
There are several available options that can be added to NBE’s base Floor
Level Tilt Table model to increase safety, productivity and profitability. General Specs

Capacity: Rated at 2500 lbs.
Base Frame: 7 gauge steel
Tilter Bucket: 7 gauge steel
Wand Holder: 3/4” dia. steel extension bar with
3.5” I.D. wand holder.
Finish: Painted NBE Metallic Grey
Tilter Actuator: Heavy duty multi-ply air bag
NBE’s patented Safety Electric or pneumatic Gaylord Covers prevent Max Air Pressure: 100 PSIG
Stop keeps your operators vibrator kits help eliminate foreign debris from falling Air Consumption: Approx. 2 CFM per cycle at 43 PSI
free from harm by the need for operators into and contaminating
reducing the potential for to reposition the vacuum the material. The cover Shipping Weight: 450 lbs.
the pivot cradle to wand due to ratholing includes an opening
unexpectedly lower due and bridging of non- for the insertion of the
to pneumatic failure free flowing material vacuum pick-up wand.
during the tilting by causing it to flow The breathable
operation. toward the vacuum wand. filter panel
has two vinyl
Other available options: Stainless Steel construction, windows for
CE Certification, Full Tilt Indicator Light, Larger Pivot quick visual level
Cradle Sizes, Dual Pivot Cradles. checks.
www.nbe-inc.com • sales@nbe-inc.com • ph. 616.399.2220 • fx. 616.399.7365 10/06
