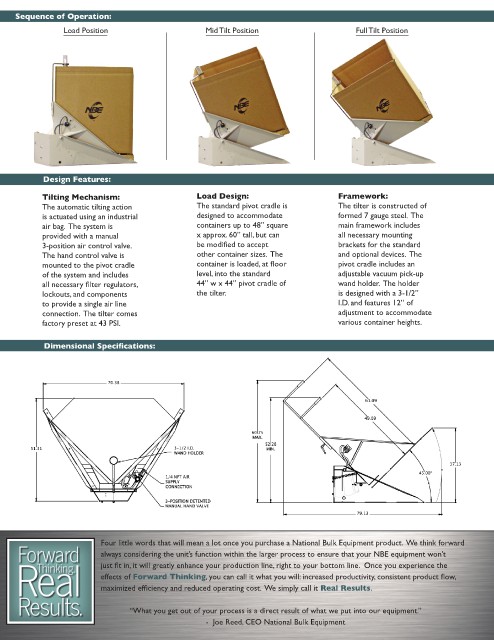

Sequence of Operation:
Load Position Mid Tilt Position Full Tilt Position

Design Features:

Tilting Mechanism: Load Design: Framework:
The automatic tilting action The standard pivot cradle is The tilter is constructed of
is actuated using an industrial designed to accommodate formed 7 gauge steel. The
air bag. The system is containers up to 48” square main framework includes
provided with a manual x approx. 60” tall, but can all necessary mounting
3-position air control valve. be modified to accept brackets for the standard
The hand control valve is other container sizes. The and optional devices. The
mounted to the pivot cradle container is loaded, at floor pivot cradle includes an
of the system and includes level, into the standard adjustable vacuum pick-up
all necessary filter regulators, 44” w x 44” pivot cradle of wand holder. The holder
lockouts, and components the tilter. is designed with a 3-1/2”
to provide a single air line I.D. and features 12” of
connection. The tilter comes adjustment to accommodate
factory preset at 43 PSI. various container heights.

Dimensional Specifications:
