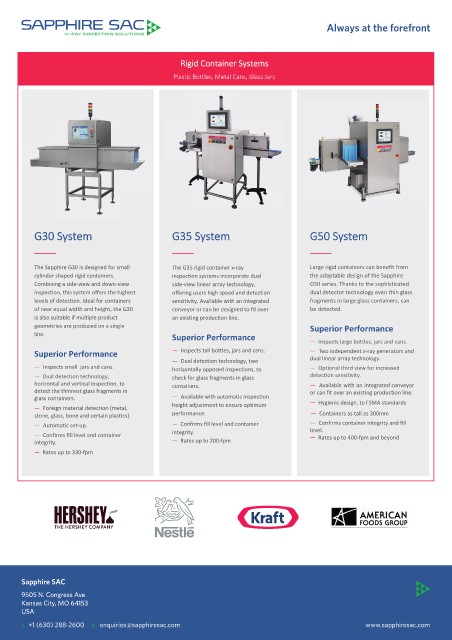

Always at the forefront

Rigid Container Systems
Plastic Bottles, Metal Cans, Glass Jars

G30 System G35 System G50 System

The Sapphire G30 is designed for small The G35 rigid container x-ray Large rigid containers can benefit from
cylinder shaped rigid containers. inspection systems incorporate dual the adaptable design of the Sapphire
Combining a side-view and down-view side-view linear array technology, G50 series. Thanks to the sophisticated
inspection, this system offers the highest offering users high speed and detection dual detector technology even thin glass
levels of detection. Ideal for containers sensitivity. Available with an integrated fragments in large glass containers, can
of near equal width and height, the G30 conveyor or can be designed to fit over be detected.
is also suitable if multiple product an existing production line.
geometries are produced on a single Superior Performance
line. Superior Performance — Inspects large bottles, jars and cans.

Superior Performance — Inspects tall bottles, jars and cans. — Two independent x-ray generators and

— Dual detection technology, two dual linear array technology.

— Inspects small jars and cans. horizontally opposed inspections, to — Optional third view for increased
— Dual detection technology, check for glass fragments in glass detection sensitivity.
horizontal and vertical inspection, to containers. — Available with an integrated conveyor
detect the thinnest glass fragments in or can fit over an existing production line.

glass containers. — Available with automatic inspection — Hygienic design, to FSMA standards

— Foreign material detection (metal, height adjustment to ensure optimum

stone, glass, bone and certain plastics). performance. — Containers as tall as 300mm

— Automatic set-up. — Confirms fill level and container — Confirms container integrity and fill

— Confirms fill level and container integrity. level.

— Rates up to 400-fpm and beyond
integrity. — Rates up to 200-fpm
— Rates up to 330-fpm

Sapphire SAC
9505 N. Congress Ave
Kansas City, MO 64153
USA
t. +1 (630) 288-2600 e. enquiries@sapphiresac.com www.sapphiresac.com
