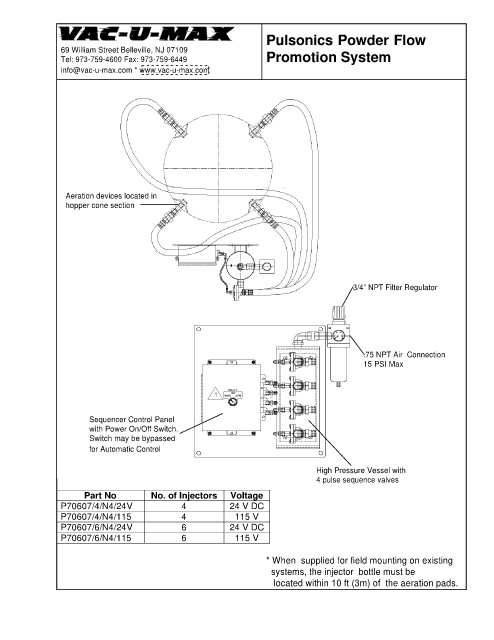

Pulsonics Powder Flow
69 William Street Belleville, NJ 07109
Tel: 973-759-4600 Fax: 973-759-6449 Promotion System
info@vac-u-max.com * www.vac-u-max.com
Aeration devices located in
hopper cone section
3/4” NPT Filter Regulator
.75 NPT Air Connection
15 PSI Max
Sequencer Control Panel
with Power On/Off Switch.
Switch may be bypassed
for Automatic Control
High Pressure Vessel with
4 pulse sequence valves
Part No No. of Injectors Voltage
P70607/4/N4/24V 4 24 V DC
P70607/4/N4/115 4 115 V
P70607/6/N4/24V 6 24 V DC
P70607/6/N4/115 6 115 V
* When supplied for field mounting on existing
systems, the injector bottle must be
located within 10 ft (3m) of the aeration pads.
