Revised 05/06 Bulletin No. 909
37 Rutgers Street Belleville, NJ 07109
Tel: 973-759-4600 * 973-759-6449 E-mail: info@vac-u-max.com* www.vac-u-max.com

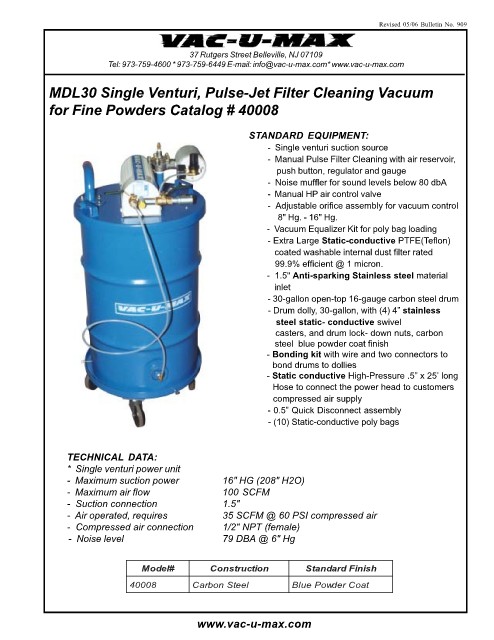

MDL30 Single Venturi, Pulse-Jet Filter Cleaning Vacuum
for Fine Powders Catalog # 40008
TECHNICAL DATA:
* Single venturi power unit
- Maximum suction power
- Maximum air flow
- Suction connection
- Air operated, requires
- Compressed air connection
- Noise level
M o d # l e
4 0 0 0 8
STANDARD EQUIPMENT:
- Single venturi suction source
- Manual Pulse Filter Cleaning with air reservoir,
push button, regulator and gauge
- Noise muffler for sound levels below 80 dbA
- Manual HP air control valve
- Adjustable orifice assembly for vacuum control
8" Hg. - 16" Hg.
- Vacuum Equalizer Kit for poly bag loading
- Extra Large Static-conductive PTFE(Teflon)
coated washable internal dust filter rated
99.9% efficient @ 1 micron.
- 1.5" Anti-sparking Stainless steel material
inlet
- 30-gallon open-top 16-gauge carbon steel drum
- Drum dolly, 30-gallon, with (4) 4” stainless
steel static- conductive swivel
casters, and drum lock- down nuts, carbon
steel blue powder coat finish
- Bonding kit with wire and two connectors to
bond drums to dollies
- Static conductive High-Pressure .5” x 25’ long
Hose to connect the power head to customers
compressed air supply
- 0.5” Quick Disconnect assembly
- (10) Static-conductive poly bags
16" HG (208" H2O)
100 SCFM
1.5"
35 SCFM @ 60 PSI compressed air
1/2" NPT (female)
79 DBA @ 6" Hg
C o n s r t u o i t c n S a t n d a r d F n i s i h
C a b r o n S e t l e B u l e P o w d e r C o t a
www.vac-u-max.com
