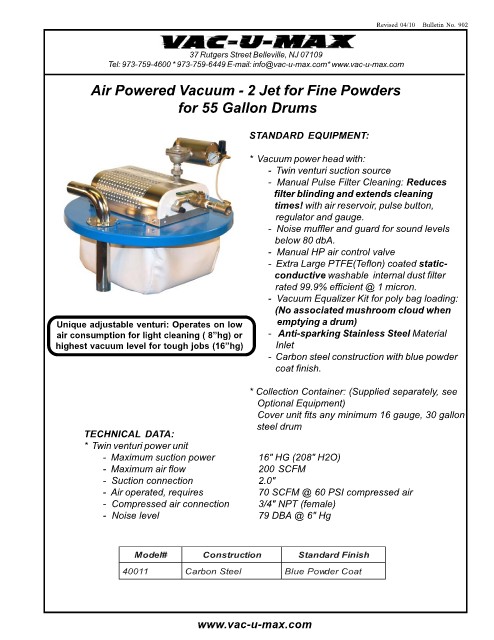

Revised 04/10 Bulletin No. 902

37 Rutgers Street Belleville, NJ 07109
Tel: 973-759-4600 * 973-759-6449 E-mail: info@vac-u-max.com* www.vac-u-max.com

Air Powered Vacuum - 2 Jet for Fine Powders
for 55 Gallon Drums

STANDARD EQUIPMENT:

* Vacuum power head with:
- Twin venturi suction source
- Manual Pulse Filter Cleaning: Reduces
filter blinding and extends cleaning
times! with air reservoir, pulse button,
regulator and gauge.
- Noise muffler and guard for sound levels
below 80 dbA.
- Manual HP air control valve
- Extra Large PTFE(Teflon) coated static-
conductive washable internal dust filter
rated 99.9% efficient @ 1 micron.
- Vacuum Equalizer Kit for poly bag loading:
(No associated mushroom cloud when
Unique adjustable venturi: Operates on low emptying a drum)
air consumption for light cleaning ( 8”hg) or - Anti-sparking Stainless Steel Material
highest vacuum level for tough jobs (16”hg) Inlet
- Carbon steel construction with blue powder
coat finish.

* Collection Container: (Supplied separately, see
Optional Equipment)
Cover unit fits any minimum 16 gauge, 30 gallon
steel drum
TECHNICAL DATA:
* Twin venturi power unit
- Maximum suction power 16" HG (208" H2O)
- Maximum air flow 200 SCFM
- Suction connection 2.0"
- Air operated, requires 70 SCFM @ 60 PSI compressed air
- Compressed air connection 3/4" NPT (female)
- Noise level 79 DBA @ 6" Hg

M o d # l e C o n s r t u o i t c n S a t n d a r d F n i s i h

4 0 0 1 1 C a b r o n S e t l e B u l e P o w d e r C o t a

www.vac-u-max.com
