Bulletin No. 901C Updated 11/11

69 William Street Belleville, NJ 07109
Tel: 973-759-4600 * 973-759-6449 E-mail: info@vac-u-max.com* www.vac-u-max.com

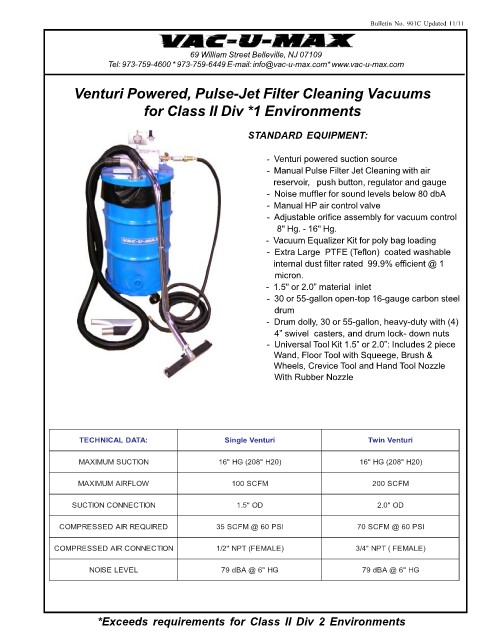

Venturi Powered, Pulse-Jet Filter Cleaning Vacuums

for Class II Div *1 Environments

STANDARD EQUIPMENT:

- Venturi powered suction source
- Manual Pulse Filter Jet Cleaning with air
reservoir, push button, regulator and gauge
- Noise muffler for sound levels below 80 dbA
- Manual HP air control valve
- Adjustable orifice assembly for vacuum control
8" Hg. - 16" Hg.
- Vacuum Equalizer Kit for poly bag loading
- Extra Large PTFE (Teflon) coated washable
internal dust filter rated 99.9% efficient @ 1
micron.
- 1.5" or 2.0” material inlet
- 30 or 55-gallon open-top 16-gauge carbon steel
drum
- Drum dolly, 30 or 55-gallon, heavy-duty with (4)
4” swivel casters, and drum lock- down nuts
- Universal Tool Kit 1.5” or 2.0”: Includes 2 piece
Wand, Floor Tool with Squeege, Brush &
Wheels, Crevice Tool and Hand Tool Nozzle
With Rubber Nozzle

T E C H N I C A L D A T A : S n i e l g V e u t n i r T w n i V e u t n i r

M A X I M U M S U C I T O N 1 " 6 H G 2 ( 0 " 8 H 2 ) 0 1 " 6 H G 2 ( 0 " 8 H 2 ) 0

M A X I M U M A R I F L O W 1 0 0 S C F M 2 0 0 S C F M

S U C I T O N C O N N E C I T O N " 5 . 1 O D " 0 . 2 O D

C O M P R E S S E D A R I R E Q U R I E D 3 5 S C F M @ 6 0 P S I 7 0 S C F M @ 6 0 P S I

C O M P R E S S E D A R I C O N N E C I T O N " 2 / 1 N P T F ( E M A L E ) " 4 / 3 N P T ( F E M A L E )

N O S I E L E V E L 7 9 d B A @ " 6 H G 7 9 d B A @ " 6 H G

*Exceeds requirements for Class II Div 2 Environments
